2.92mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.51mm Pin Diameter

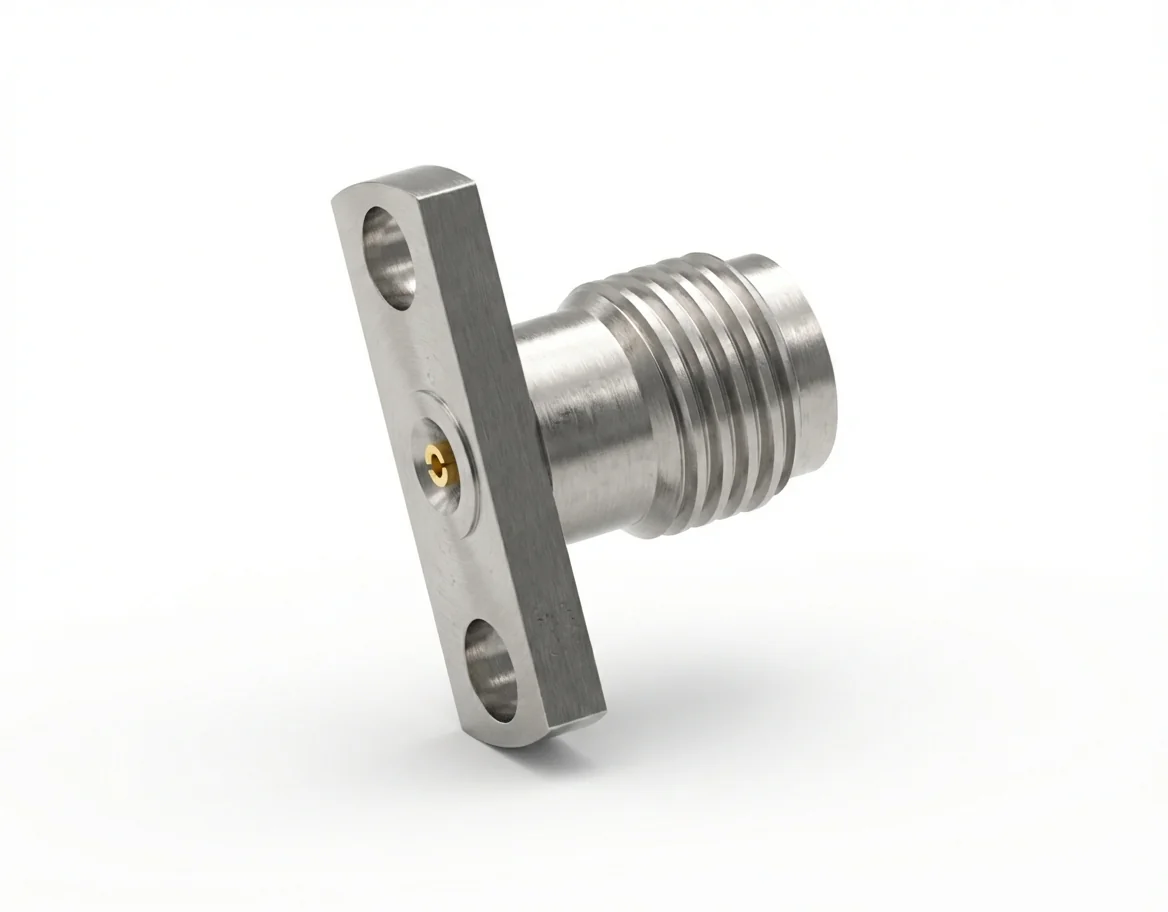

2.92mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD25

The 2.92 mm female 2-hole flange mount RF connector with a 0.51 mm pin and 10.2 mm hole spacing is built for heavy-duty broadband testing and repeatable calibration environments. Designed for 50 Ω operation up to 40 GHz, this field-replaceable connector delivers consistent signal performance and mechanical reliability.

Electrical Performance

Featuring VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 2-hole flange mount RF connector ensures stable transmission and low return loss. The 0.51 mm pin provides a wider contact surface for high-power integrity.

Construction and Compliance

The 2.92 mm female flange connector is precision-machined from stainless steel with gold-plated beryllium copper contacts and fully REACH and RoHS certified.

Applications

Ideal for broadband measurement modules, phase-stable test cables, and 2-hole flange mount RF connectors in demanding laboratory setups.

Complementary Male Connector

Use with the 2.92 mm male 2-hole flange mount RF connector – Model 2.92-JFD25. Find the full 2.92 mm RF connector series in our RF Connector Catalog.
