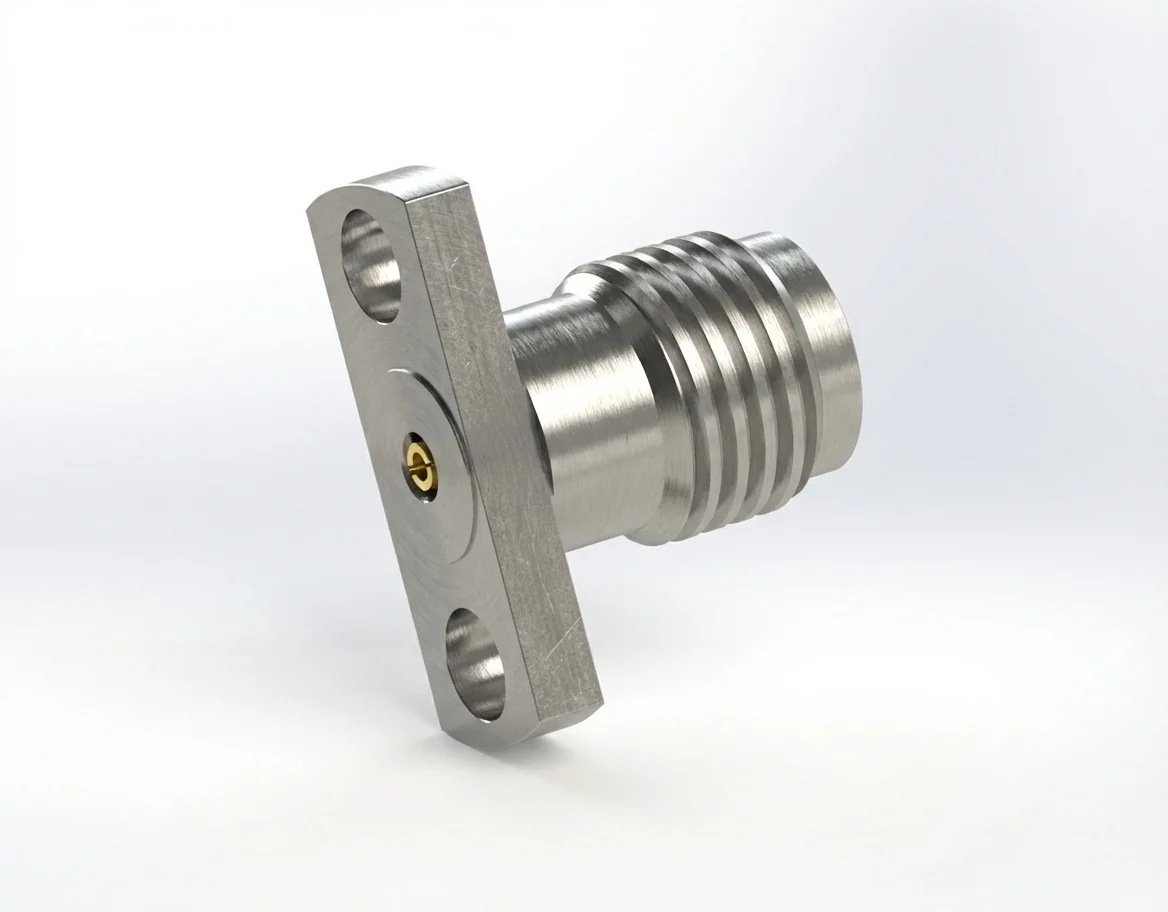

2.92mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.51mm Pin Diameter

2.92mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD30

The 2.92 mm female 2-hole flange mount RF connector with a 0.51 mm pin and 9 mm hole spacing provides maximum durability for broadband systems up to 40 GHz. Engineered for 50 Ω impedance, this field-replaceable connector maintains reliable low-loss operation under repeated high-frequency mating.

Broadband Performance Assurance

VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB ensure minimal reflection and accurate measurement response. The 0.51 mm pin design provides larger contact surface for consistent mechanical and electrical reliability.

Durability and Environmental Compliance

Machined from stainless steel and gold-plated beryllium copper, the 2.92 mm female flange connector is REACH and RoHS certified, suitable for demanding laboratory and field applications.

Integration and Use Cases

Ideal for precision test fixtures, micro-measurement tools, and 2-hole flange mount RF modules requiring compact yet high-frequency stability.

Corresponding Male Connector

Use alongside the 2.92 mm male 2-hole flange mount RF connector – Model 2.92-JFD30. See the full 2.92 mm RF connector range in our RF Connector Catalog.
