2.92mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.38mm Pin Diameter

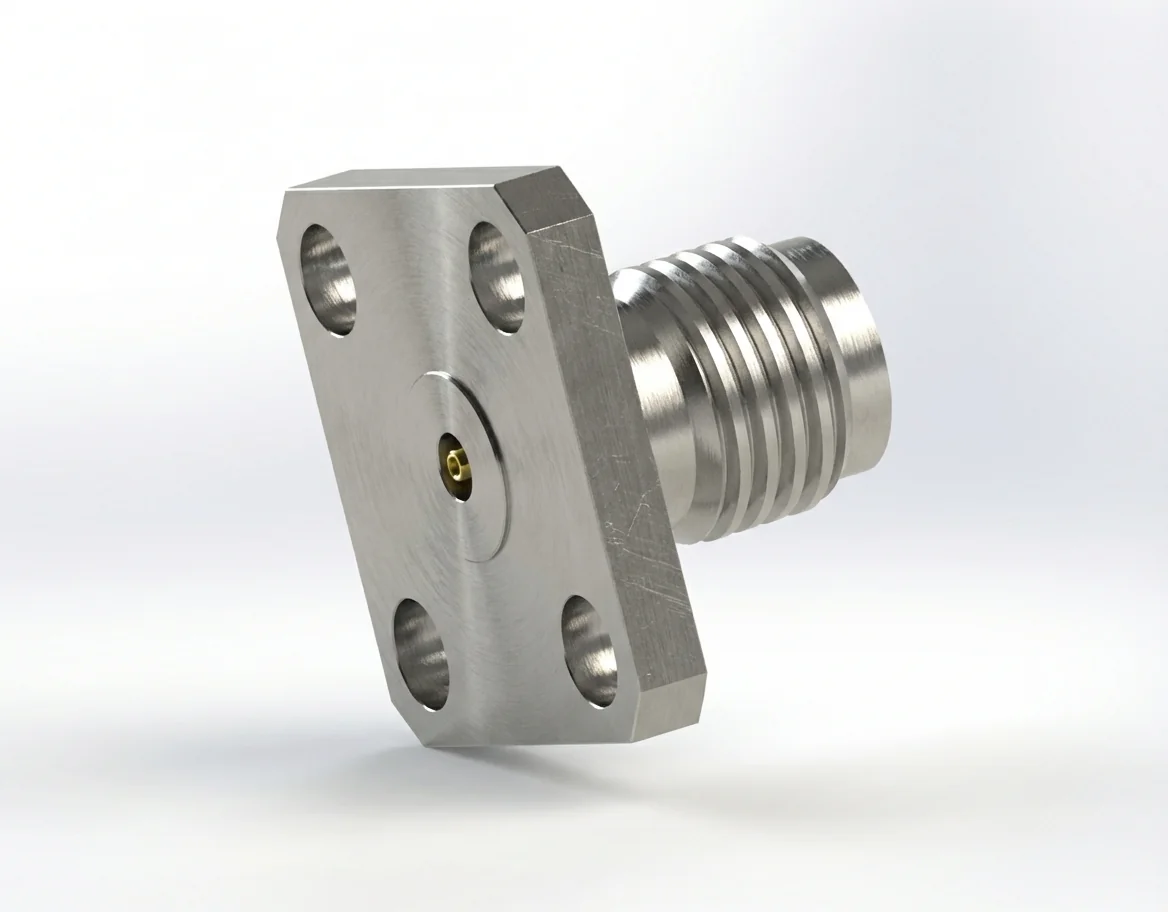

2.92mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD3

The 2.92 mm female 4-hole flange mount RF connector with a 0.38 mm pin and 8.64 mm hole spacing is designed for robust, high-accuracy measurement assemblies. Supporting 50 Ω systems up to 40 GHz, this field-replaceable connector combines mechanical strength with low insertion loss for consistent test repeatability.

High-Precision Electrical Characteristics

Delivering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 4-hole flange mount RF connector minimizes reflection while preserving signal clarity. The 0.38 mm pin enhances contact robustness under repeated connections.

Construction and Compliance

Fabricated from stainless steel and gold-plated beryllium copper, the 2.92 mm female flange connector provides corrosion resistance and excellent conductivity. It is REACH and RoHS compliant and qualified for −55 °C to +165 °C operation.

Applications and Integration

Perfect for broadband instruments, calibration fixtures, and RF switching systems requiring 4-hole flange mount RF connectors with repeatable accuracy.

Paired Male Connector

The 2.92-KFD3 mates with the 2.92 mm male 4-hole flange mount RF connector – Model 2.92-JFD3. Browse the full 2.92 mm RF connector series and RF Connector Catalog for complementary options.
