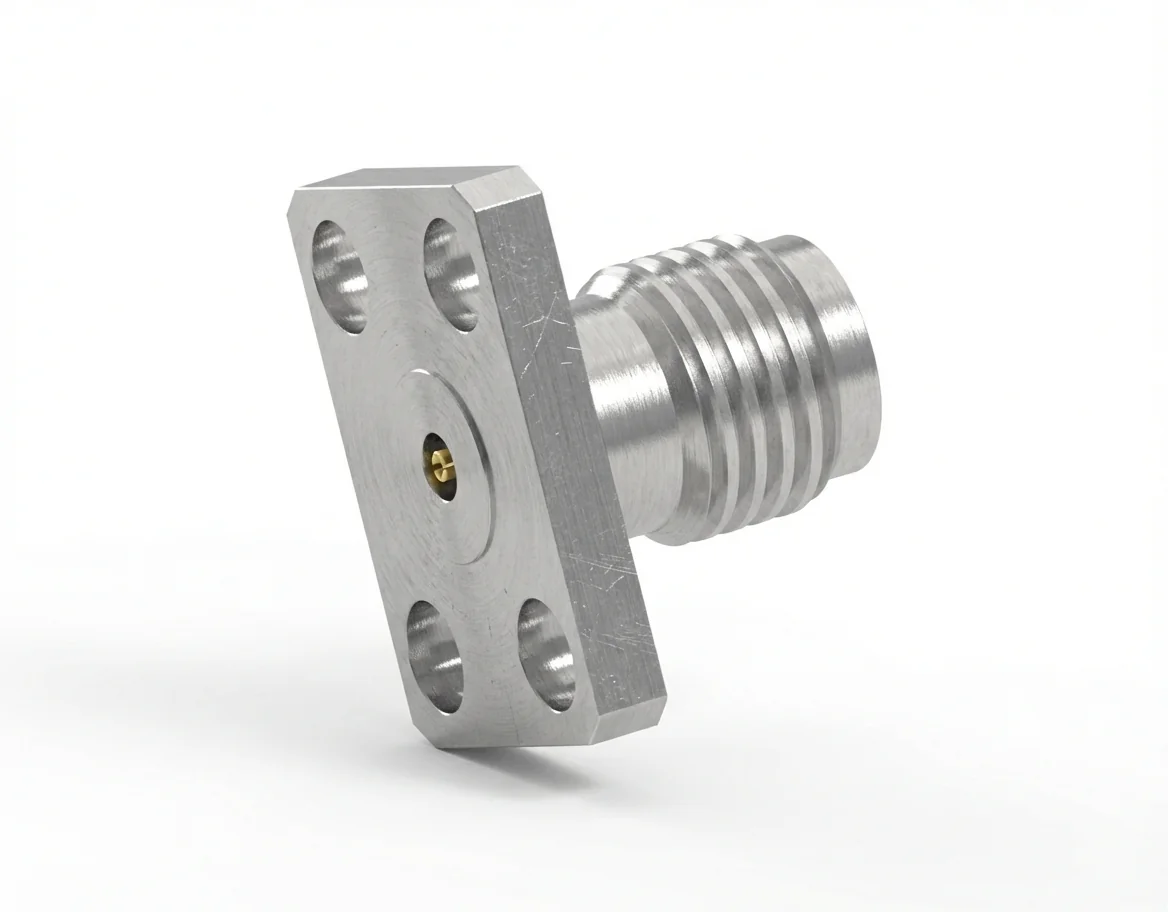

2.92mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.3mm Pin Diameter

2.92mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD12

The 2.92 mm female 4-hole flange mount RF connector with a 0.30 mm pin and 5.64 mm hole spacing offers a balanced design between mechanical strength and electrical precision. With 50 Ω impedance and operation to 40 GHz, this field-replaceable connector provides dependable results for high-frequency laboratory instruments.

Reliable High-Frequency Performance

Boasting VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 4-hole flange mount RF connector maintains consistent impedance and minimal signal degradation. The 0.30 mm pin offers increased durability under frequent mating cycles.

Materials and Compliance

Made of stainless steel with gold-plated beryllium copper contacts, the 2.92 mm female flange connector is fully REACH and RoHS compliant and functions from −55 °C to +165 °C.

Applications and Integration

Perfect for microwave test equipment, modular instruments, and 4-hole flange mount RF systems that require mechanical stability in tight layouts.

Compatible Male Version

Integrate with the 2.92 mm male 4-hole flange mount RF connector – Model 2.92-JFD12. Explore more in the 2.92 mm RF connector family and the RF Connector Catalog.
