2.92mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.3mm Pin Diameter

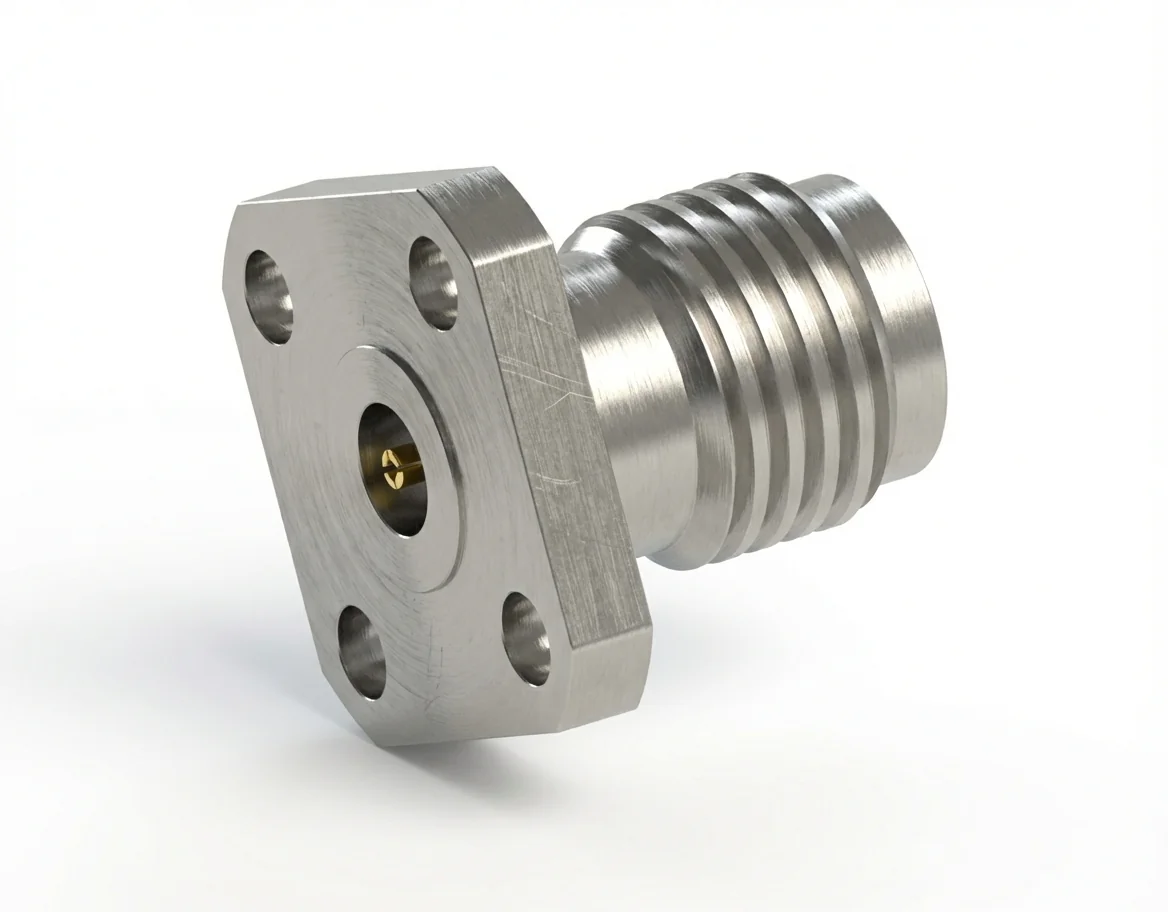

2.92mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD7

The 2.92 mm female 4-hole flange mount RF connector with a 0.30 mm pin and 6.35 mm hole spacing is built for broadband measurement systems where size and precision matter. Rated 50 Ω and DC–40 GHz, this field-replaceable connector ensures repeatable impedance stability in compact, high-density test environments.

Low VSWR and Stable Performance

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 4-hole flange mount RF connector minimizes reflection while maintaining signal clarity. The 0.30 mm pin provides a durable, well-balanced interface for repetitive calibration cycles.

Durability and Compliance

The 2.92 mm female flange connector is precision-machined from stainless steel and features gold-plated beryllium copper contacts for long-lasting performance. Fully REACH and RoHS compliant, it withstands −55 °C to +165 °C operating conditions.

Applications

Commonly used in signal analyzers, calibration modules, and flange-mounted RF systems requiring reduced footprint and high repeatability.

Male Equivalent

Integrate with the 2.92 mm male 4-hole flange mount RF connector – Model 2.92-JFD7 for paired assemblies. See all 2.92 mm RF connectors in our RF Connector Catalog.
