2.92mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.51mm Pin Diameter

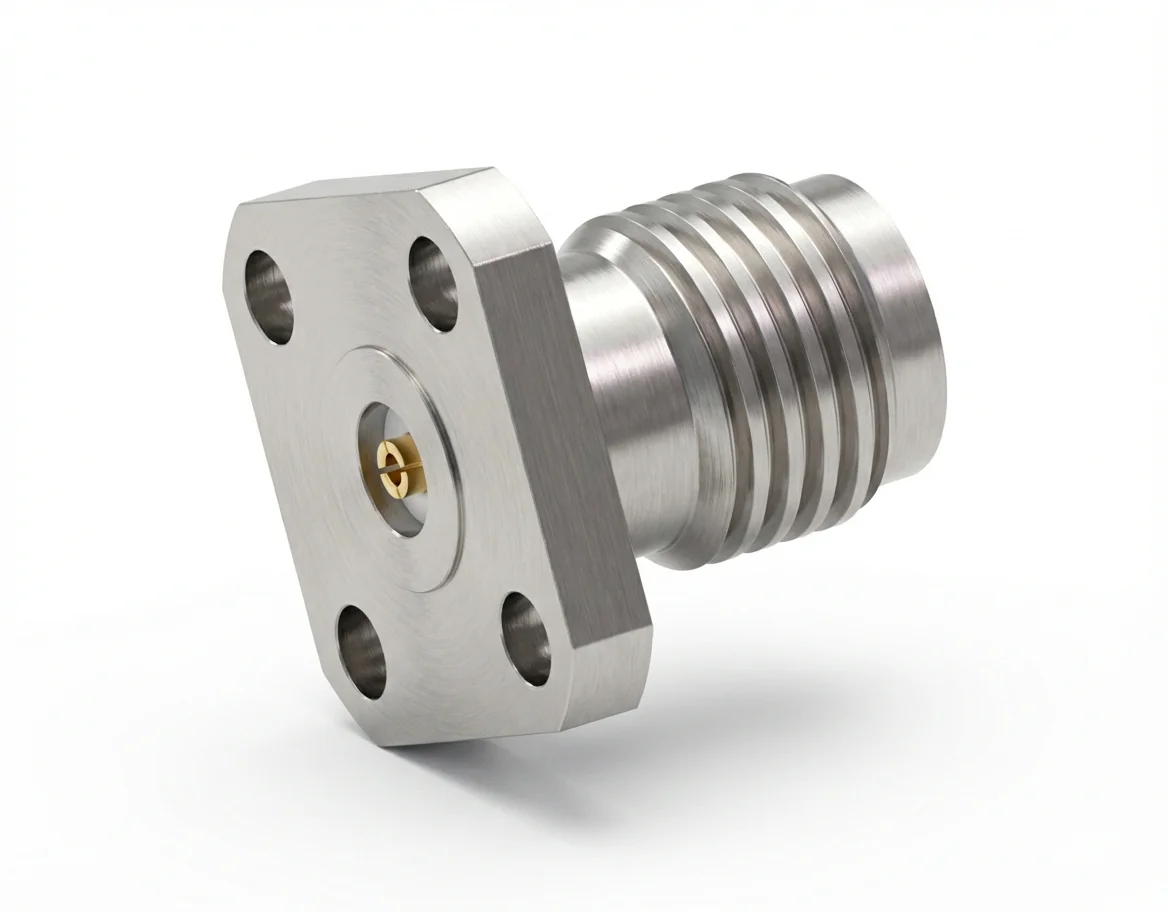

2.92mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD10

The 2.92 mm female 4-hole flange mount RF connector with a 0.51 mm pin and 6.35 mm hole spacing delivers enhanced contact durability for broadband systems operating up to 40 GHz. This field-replaceable connector ensures long-term stability in calibration and signal analysis environments.

Electrical Reliability

Delivering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 4-hole flange mount RF connector provides precise impedance matching and low-loss signal transfer. The thicker 0.51 mm pin increases contact pressure and mechanical stability under repeated use.

Mechanical Design and Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm female flange connector ensures durability and corrosion resistance. It is fully REACH and RoHS compliant and qualified for −55 °C to +165 °C.

Applications

Designed for 4-hole flange mount RF modules, precision test benches, and broadband analyzer systems requiring long-term signal consistency.

Complementary Male Version

Pair with the 2.92 mm male 4-hole flange mount RF connector – Model 2.92-JFD10. Find matching options in the 2.92 mm RF connector series and our RF Connector Catalog.
