2.92mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.51mm Pin Diameter

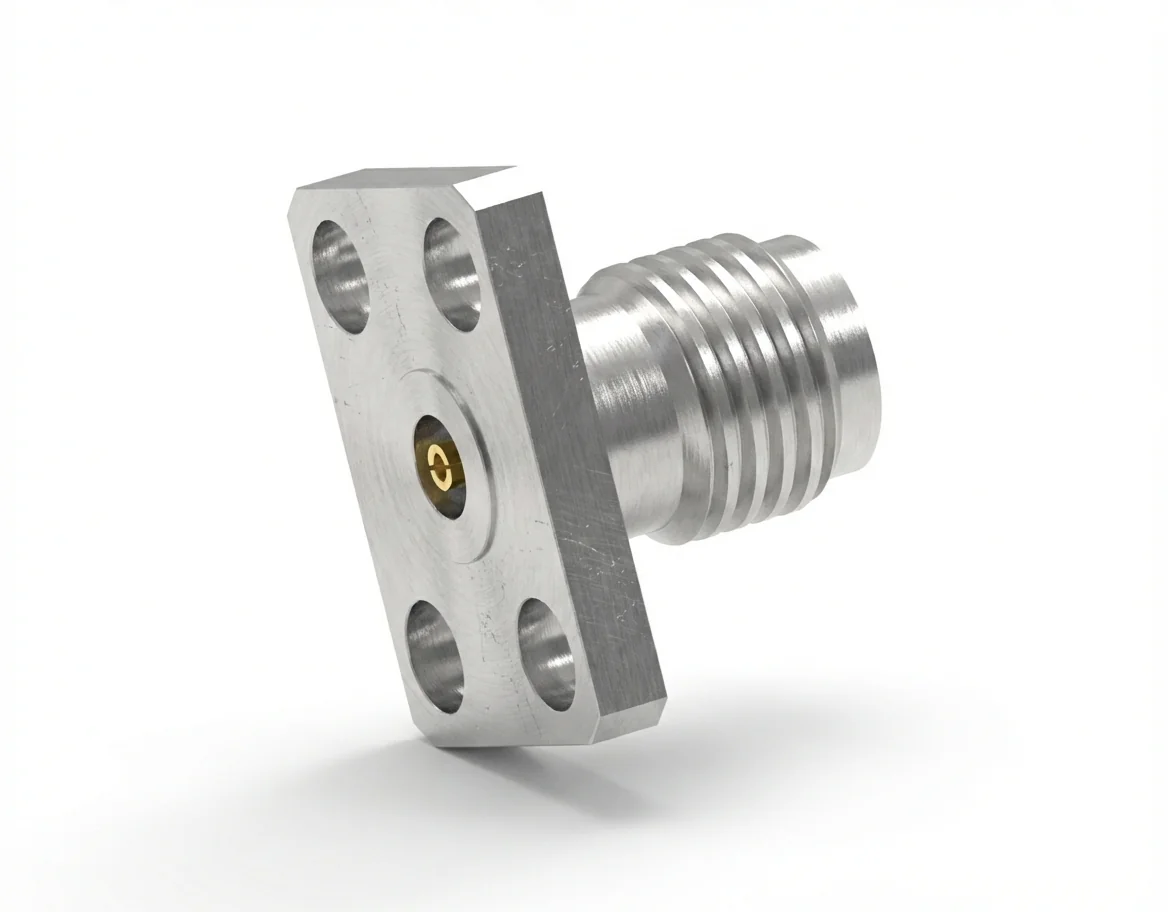

2.92mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD15

The 2.92 mm female 4-hole flange mount RF connector with a 0.51 mm pin and 5.64 mm hole spacing provides exceptional mechanical robustness and broadband stability for laboratory and field use. Operating up to 40 GHz with 50 Ω impedance, this field-replaceable connector guarantees low-loss performance and reliable repeatability.

Electrical Precision and Durability

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 4-hole flange mount RF connector delivers consistent signal quality under frequent mating conditions. The 0.51 mm pin increases contact surface for stable power transfer.

Construction and Compliance

Machined from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm female flange connector is fully REACH and RoHS compliant and performs from −55 °C to +165 °C.

Applications and Mounting

Designed for compact 4-hole flange mount RF modules, calibration benches, and precision measurement systems where stability and longevity are essential.

Complementary Male Connector

Compatible with the 2.92 mm male 4-hole flange mount RF connector – Model 2.92-JFD15. Browse our 2.92 mm RF connector series in the RF Connector Catalog for related products.
