2.92mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.51mm Pin Diameter

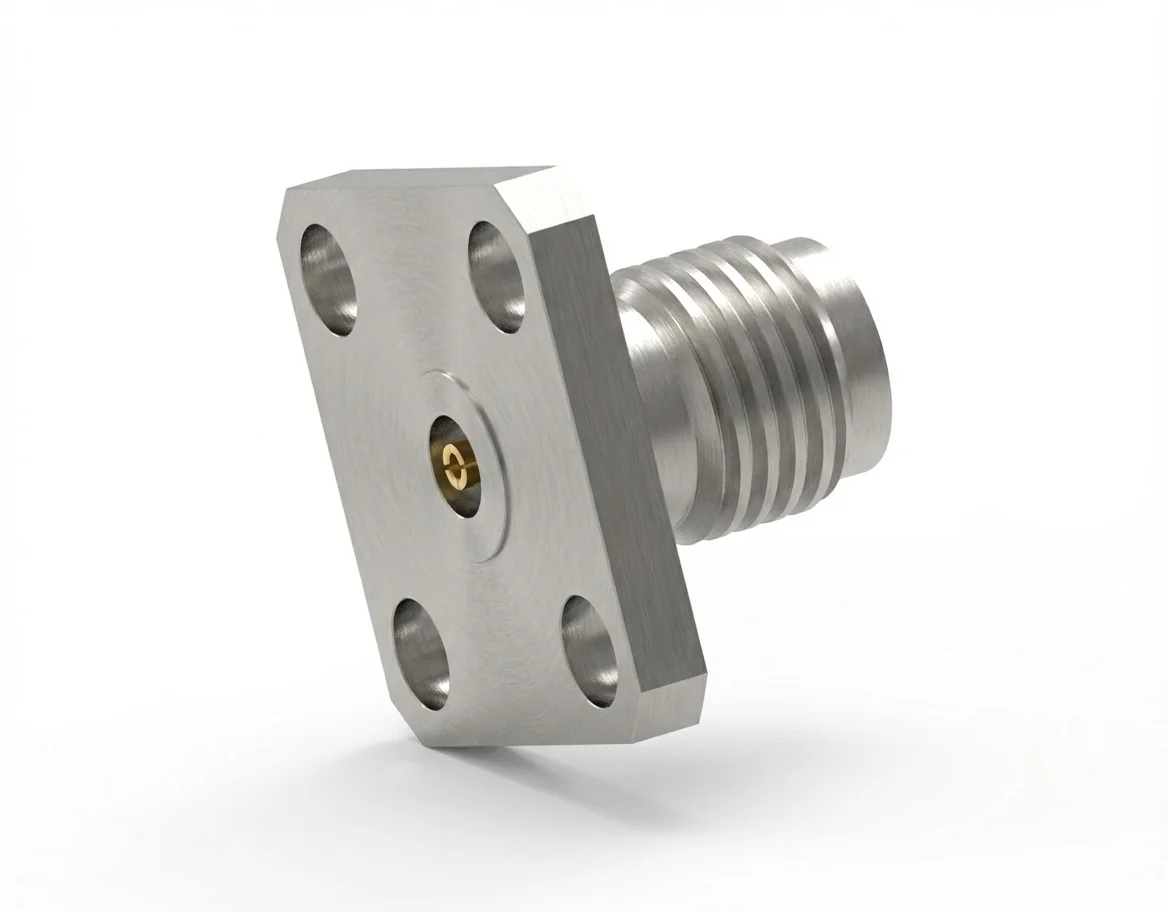

2.92mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD5

The 2.92 mm female 4-hole flange mount RF connector with a 0.51 mm pin and 8.64 mm hole spacing delivers robust mechanical endurance and low-loss electrical performance. Designed for 50 Ω operation from DC to 40 GHz, this field-replaceable connector ensures precision connectivity for demanding RF measurement systems.

Consistent Electrical Performance

Offering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 4-hole flange mount RF connector maintains phase stability and minimal reflection. The 0.51 mm pin enhances contact pressure, extending the lifespan in frequent-use environments.

Material Construction and Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm female flange connector ensures durability and conductivity under varied temperature ranges. It is REACH and RoHS compliant and withstands −55 °C to +165 °C.

Application and Mounting

Ideal for integration into 4-hole flange mount precision test systems, high-power calibration modules, and modular analyzers.

Matching Male Version

The 2.92-KFD5 pairs with the 2.92 mm male 4-hole flange mount RF connector – Model 2.92-JFD5. Visit the 2.92 mm RF connector section or the RF Connector Catalog for more models.
