2.92mm Female Field Replaceable RF Connector – Threaded Mount, 0.3mm Pin Diameter

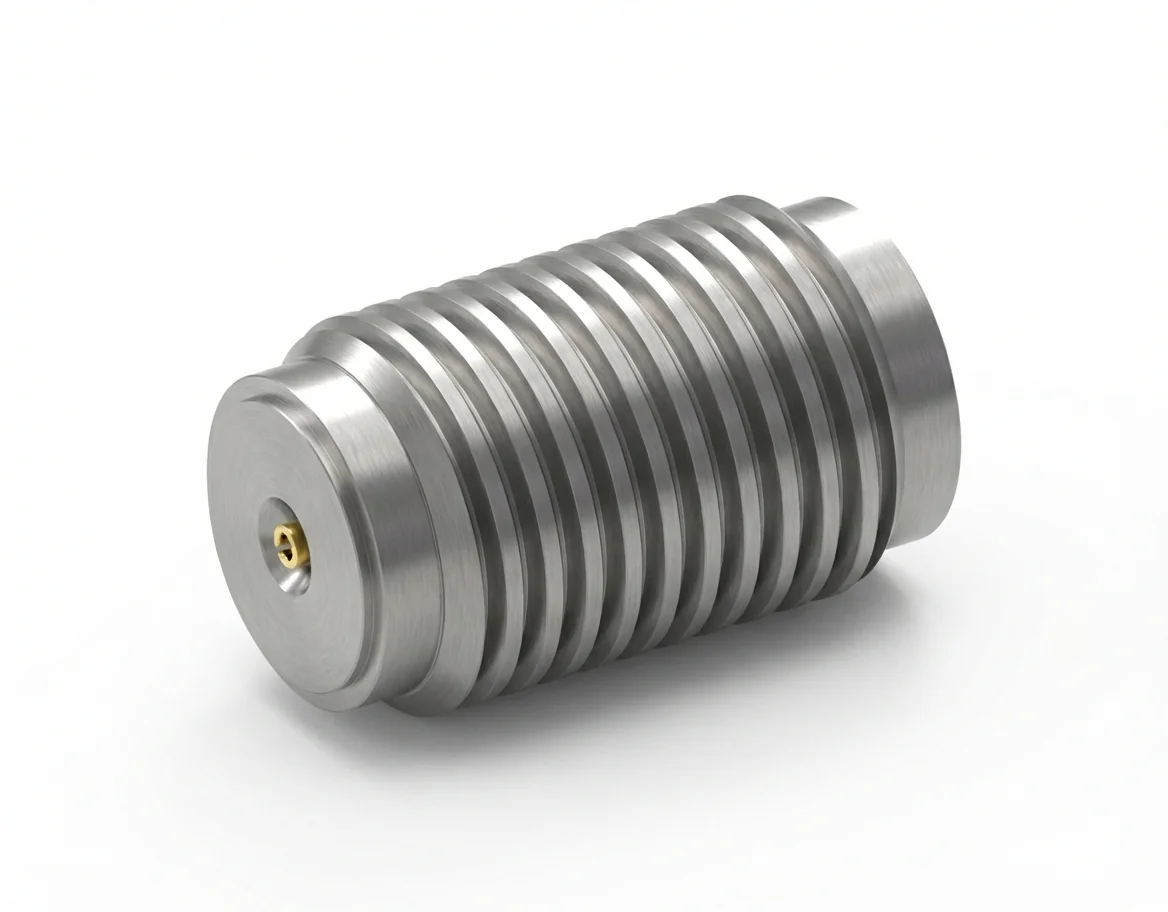

2.92mm Female Field Replaceable RF Connector – Threaded Mount, Model 2.92-KSS1

The 2.92mm female field replaceable RF connector with a 0.3 mm pin and threaded mount design delivers exceptional precision and reliability for high-frequency interconnect systems. Designed for 50 Ω impedance and frequency operation up to 40 GHz, this connector ensures consistent performance across broadband microwave and measurement environments.

High-Frequency Electrical Stability

Offering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92mm female field replaceable connector maintains signal integrity and low reflection for demanding RF applications. Its threaded coupling structure provides superior grounding and repeatable connection accuracy in modular and calibration-grade systems.

Robust Material Design and Compliance

Manufactured from passivated stainless steel with gold-plated beryllium copper contacts, the 2.92mm field replaceable RF connector offers high durability, corrosion resistance, and low intermodulation. It is fully REACH and RoHS compliant and supports stable operation from −55 °C to +165 °C under varying mechanical stresses.

Applications in Precision Measurement and Instrumentation

This field replaceable RF connector is ideal for microwave instrumentation, radar test interfaces, and precision measurement systems where reusability and mechanical consistency are essential. The threaded mount configuration ensures solid fixation and long-term electrical reliability.

Custom RF Connector Options

Mechanc’s 2.92mm RF connector range includes threaded, flange-mount, and solder-attachment versions for flexible system integration. Explore the full RF Connector Catalog to select a configuration that meets your application’s technical and mechanical needs.
