Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

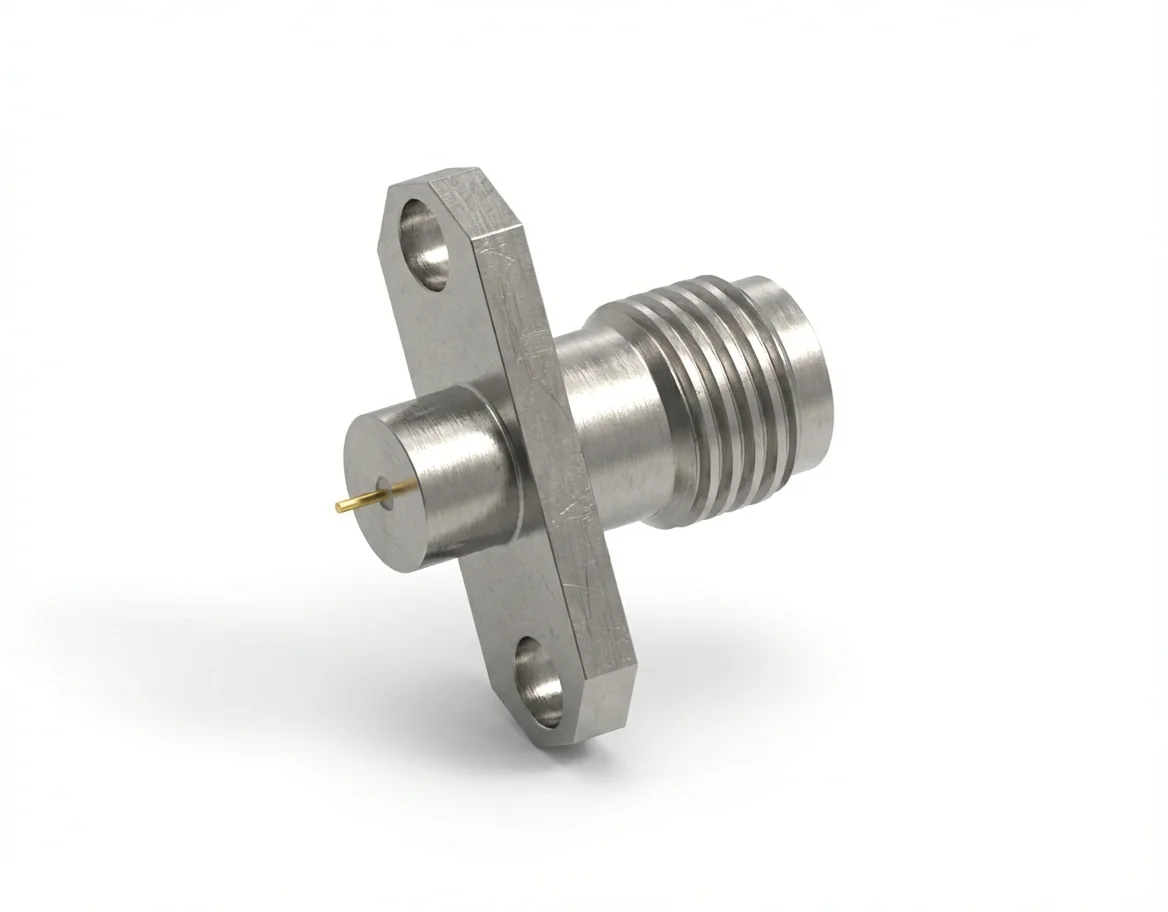

The 2.92mm female 2-hole flange mount RF connector with a 0.30 mm pin and 12.2 mm hole spacing is precision-engineered for solder attachment and high-frequency performance. Operating at 50 Ω impedance from DC to 40 GHz, this connector ensures stable transmission and low insertion loss in demanding RF and microwave systems.
Delivering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92mm female 2-hole flange mount RF connector maintains excellent return-loss control and signal integrity across broadband applications. Its stub terminal configuration supports precise solder attachment and robust electrical grounding.
Constructed from stainless steel with gold-plated beryllium copper contacts, the 2.92mm female flange connector provides outstanding corrosion resistance, electrical stability, and long-term reliability. It is fully REACH and RoHS compliant, ensuring dependable operation from −55 °C to +165 °C under mechanical stress or repeated thermal cycling.
The 12.2 mm 2-hole flange configuration supports integration with 2-hole flange mount RF connectors used in radar calibration, vector network analyzers, and high-speed instrumentation. The solder attachment ensures permanent, vibration-resistant performance.
Mechanc offers a full range of 2.92mm RF connectors designed for broadband and precision testing environments. Visit our RF Connector Catalog to explore compatible solder, field-replaceable, and flange mount solutions.
