2.92mm Female Straight RF Connector – Fits CFS360 Coaxial Cable

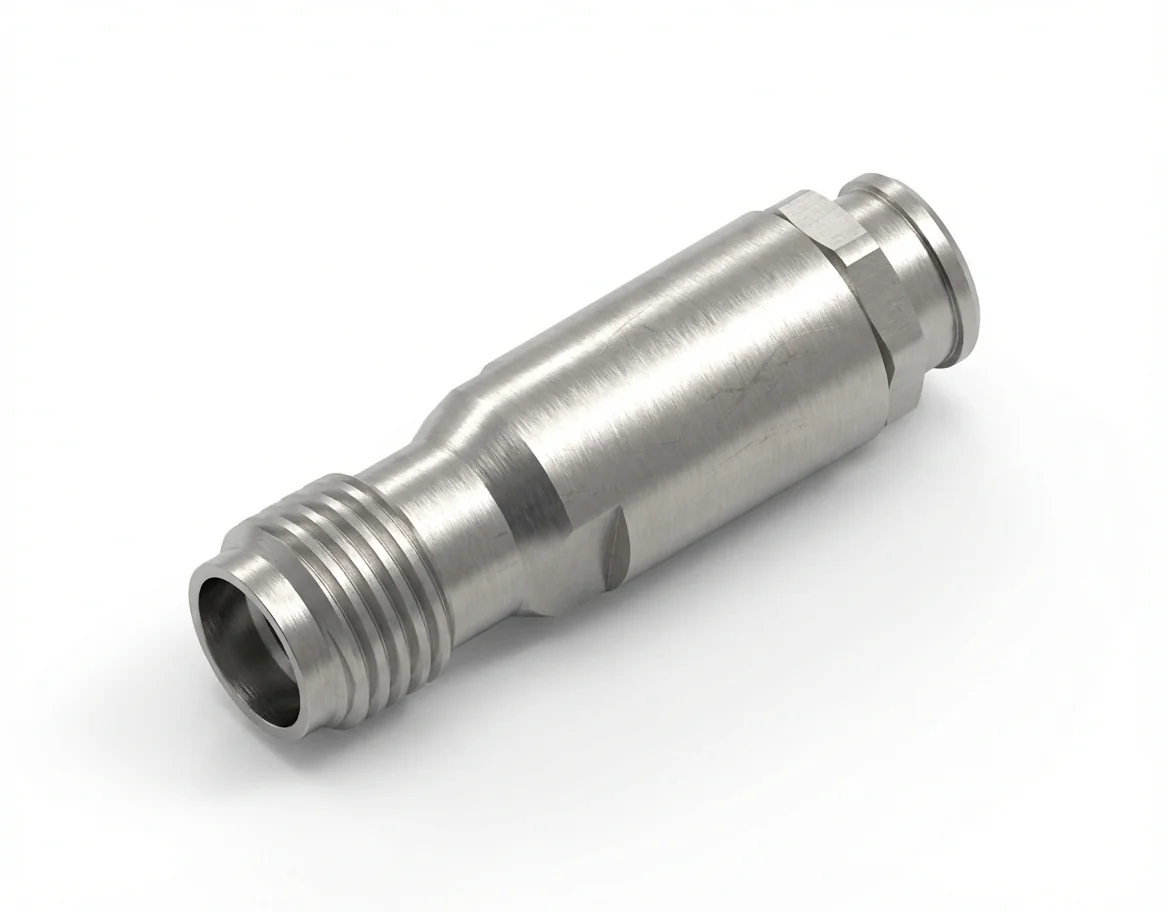

2.92mm Female Straight RF Connector – Cable Mount, Model 2.92-KCFS360-1

The 2.92 mm female straight cable-mount RF connector, model 2.92-KCFS360-1, is a precision interconnect engineered for ultra-low-loss assemblies using the CFS360 phase-stable coaxial cable. Operating from DC to 40 GHz with a 50 Ω impedance, VSWR ≤ 1.17, and insertion loss ≤ 0.06 √f dB, it provides high measurement repeatability and phase stability for advanced microwave and metrology applications. Explore the 2.92 mm connector family for compatible precision interfaces.

Broadband Electrical Performance and Stability

The 2.92-KCFS360-1 connector ensures precise impedance transition and minimal reflection up to 40 GHz. Its optimized interface geometry delivers low return loss and phase consistency, supporting microwave calibration, network analysis, and precision test benches.

Material Design and Contact Durability

Built from stainless steel and equipped with a gold-plated beryllium-copper center contact, the 2.92-KCFS360-1 provides excellent corrosion resistance and stable electrical continuity through repeated mating cycles. Precision machining guarantees repeatable S-parameter performance across broadband frequencies. Discover additional high-frequency models under RF connectors.

Termination Geometry and Structural Reliability

The solder-mount design provides firm cable retention and dielectric stability, preserving impedance uniformity and low reflection under mechanical load or vibration. Alternative precision terminations are available within cable-mount connectors.

System Integration and Measurement Accuracy

For optimal performance, pair the 2.92-KCFS360-1 connector with the CFS360 ultra-low-loss, phase-stable coaxial cable to achieve exceptional attenuation control and repeatable microwave accuracy in vector network analysis and calibration laboratory environments.

For the corresponding male version, see the mirror part:

2.92mm Male Straight RF Connector – Fits CFS360 Coaxial Cable, Model 2.92-JCFS360-1
.
