2.92mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.23mm Pin Diameter

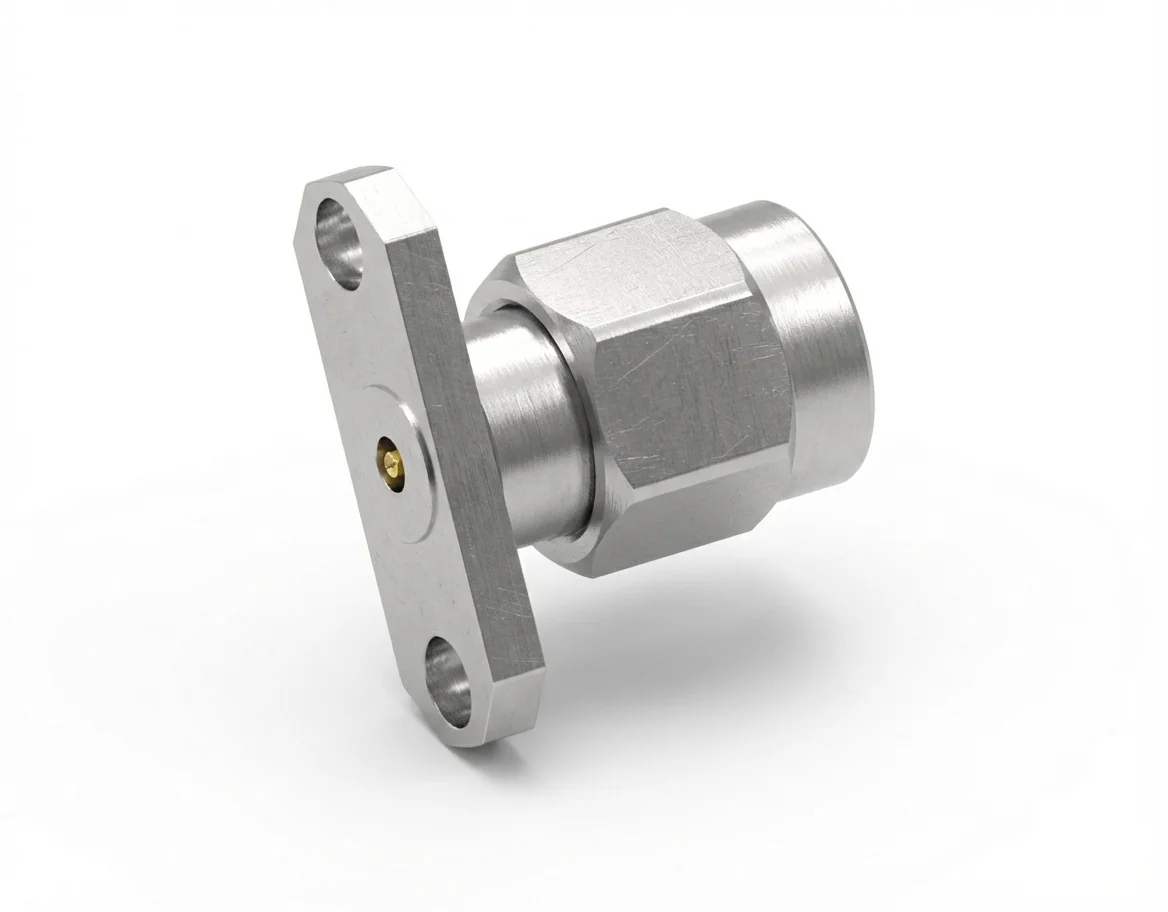

2.92mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD16

The 2.92 mm male 2-hole flange mount RF connector with a 0.23 mm pin and 12.22 mm hole spacing offers a compact yet stable solution for broadband systems up to 40 GHz. This field-replaceable connector ensures reliable contact and precise impedance control in compact test modules.

Precision Performance in a Compact Format

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 2-hole flange mount RF connector provides low-reflection transmission and stable broadband matching for high-frequency applications.

Material Quality and Environmental Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm male flange connector is fully REACH and RoHS compliant.

Applications in Precision Test Systems

Ideal for high-density RF modules and 2-hole flange mount assemblies requiring repeatable connectivity and tight dimensional control.

Mirror Female Connector

Pair with the 2.92 mm female 2-hole flange mount RF connector – Model 2.92-KFD16. View the 2.92 mm RF connector range in our RF Connector Catalog.
