2.92mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.23mm Pin Diameter

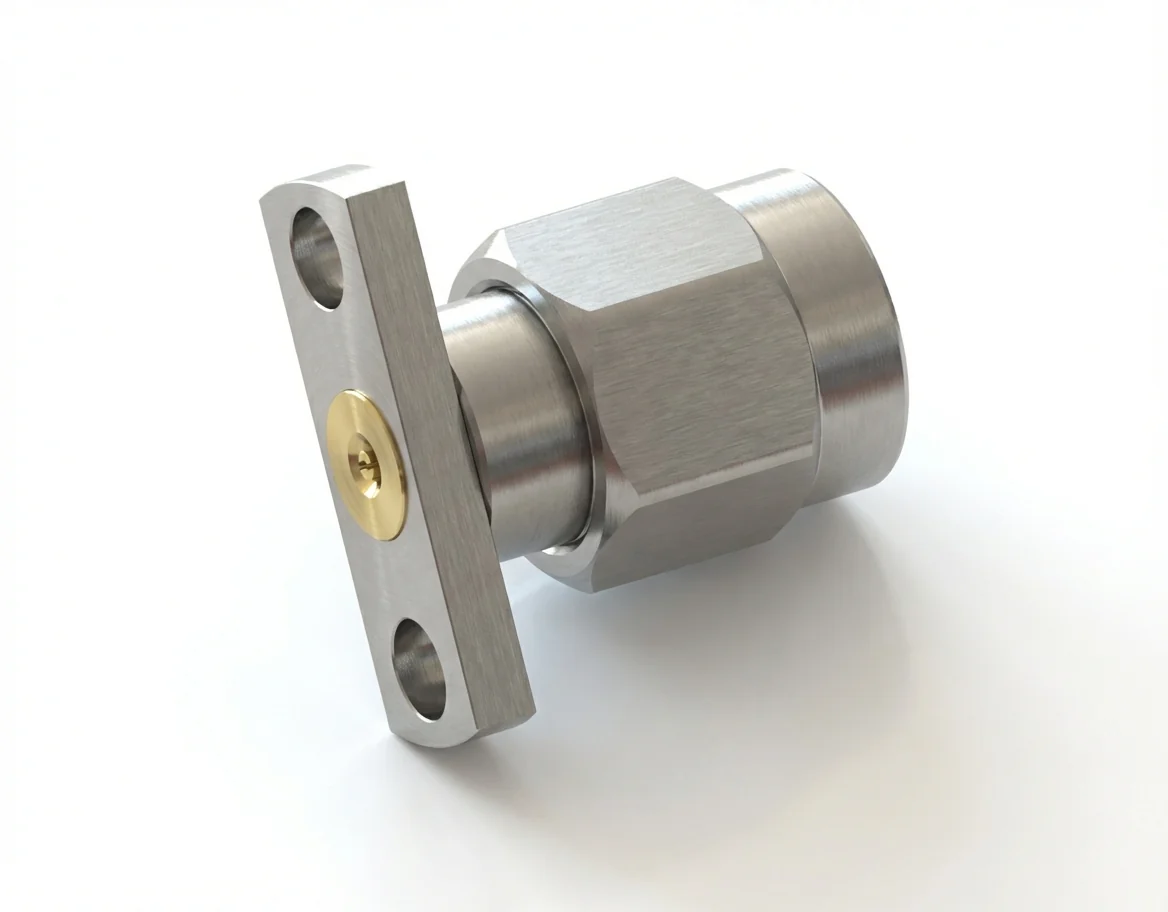

2.92mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD21

The 2.92 mm male 2-hole flange mount RF connector with a 0.23 mm pin and 10.2 mm hole spacing is ideal for dense RF modules operating up to 40 GHz. This field-replaceable connector offers high-precision impedance control and low-loss transmission in compact assemblies.

Optimized for Miniature Assemblies

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 2-hole flange mount RF connector provides excellent return-loss stability in tight layouts.

Material Precision and Compliance

Made of stainless steel and gold-plated beryllium copper, the 2.92 mm male flange connector is fully REACH and RoHS certified.

Integration and Use Cases

Ideal for high-density test equipment and 2-hole flange mount RF assemblies requiring precise alignment and repeatable performance.

Mirror Female Connector

Pair with the 2.92 mm female 2-hole flange mount RF connector – Model 2.92-KFD21. See the 2.92 mm connector family in our RF Connector Catalog.
