2.92mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.38mm Pin Diameter

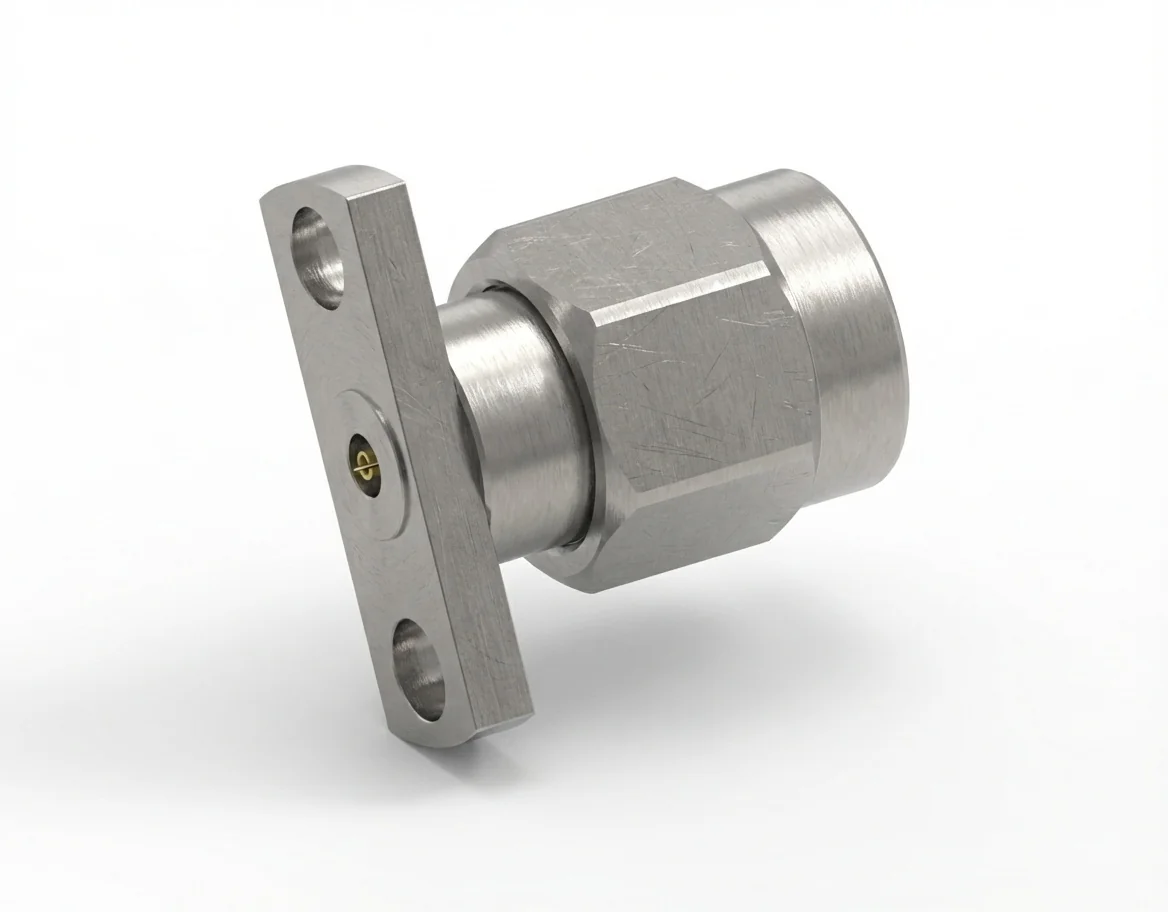

2.92mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD23

The 2.92 mm male 2-hole flange mount RF connector with a 0.38 mm pin and 10.2 mm hole spacing delivers high-precision signal control for broadband systems up to 40 GHz. This field-replaceable connector ensures superior mechanical strength and RF consistency.

Stable High-Frequency Operation

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 2-hole flange mount RF connector provides repeatable performance with low phase deviation.

Material Standards and Sustainability

Made of stainless steel and gold-plated beryllium copper, the 2.92 mm male flange connector is fully REACH and RoHS compliant.

Use Cases

Best for compact test fixtures and 2-hole flange mount assemblies where precision and repeatability are essential.

Mirror Female Connector

Pair with the 2.92 mm female 2-hole flange mount RF connector – Model 2.92-KFD23. View our 2.92 mm RF connectors in the RF Connector Catalog.
