2.92mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.38mm Pin Diameter

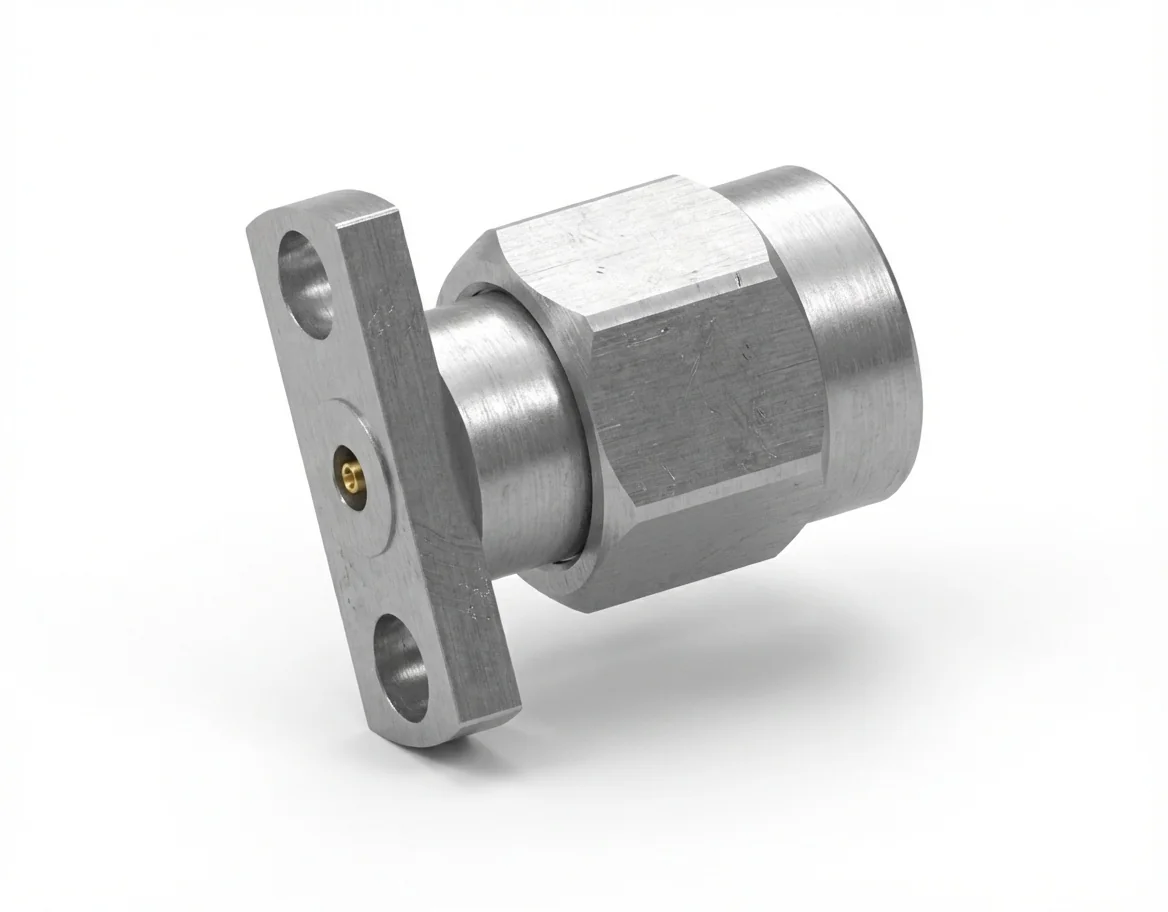

2.92mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD28

The 2.92 mm male 2-hole flange mount RF connector with a 0.38 mm pin and 9 mm hole spacing provides stable broadband connections for RF systems up to 40 GHz. This field-replaceable connector is optimized for tight mechanical tolerance and low signal distortion.

High-Frequency Stability

Offering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 2-hole flange mount RF connector ensures precise impedance control and broadband consistency.

Durability and Compliance

Constructed from stainless steel and gold-plated beryllium copper, the 2.92 mm male flange connector is fully REACH and RoHS compliant.

Applications

Ideal for microwave testing and 2-hole flange mount RF assemblies where signal accuracy and mechanical repeatability are critical.

Equivalent Female Connector

Match with the 2.92 mm female 2-hole flange mount RF connector – Model
