2.92mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.3mm Pin Diameter

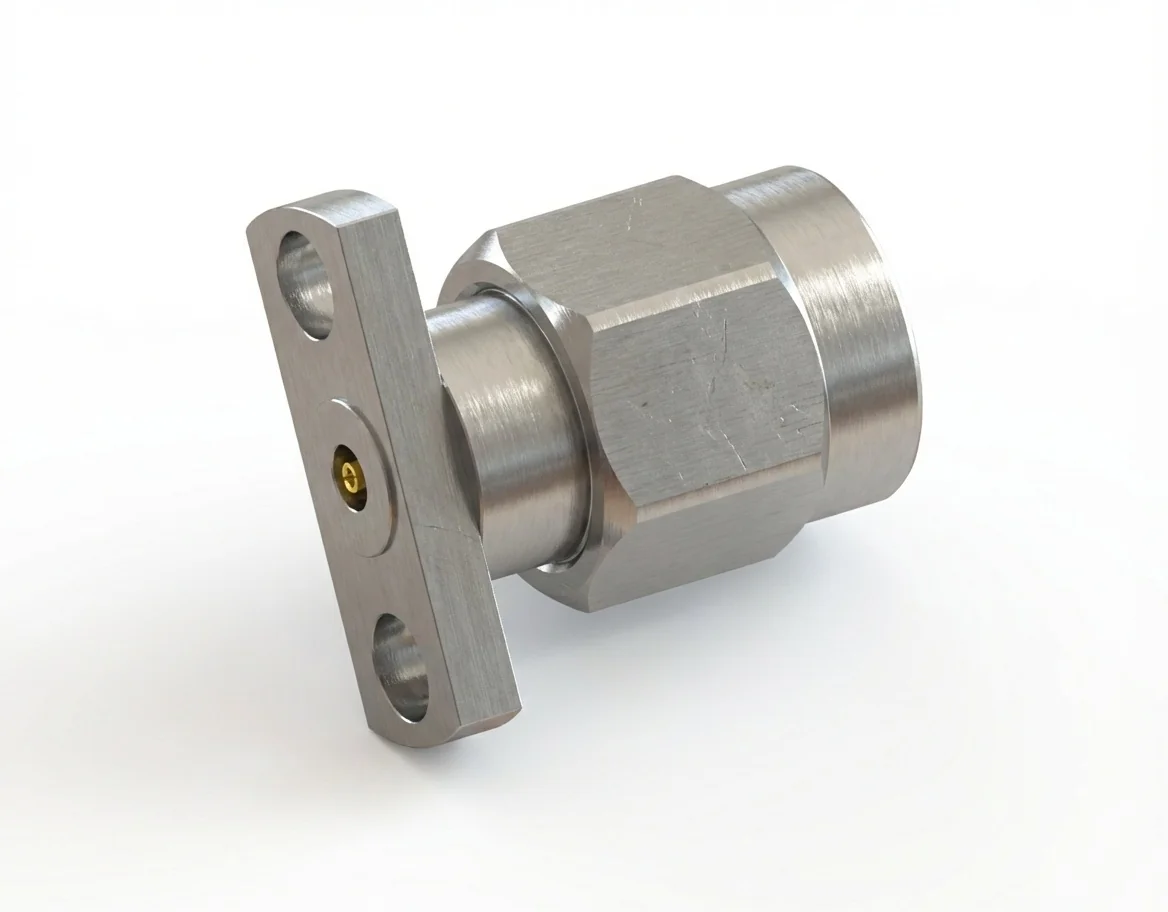

2.92mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD27

The 2.92 mm male 2-hole flange mount RF connector with a 0.30 mm pin and 9 mm hole spacing is crafted for microwave systems up to 40 GHz. This field-replaceable connector delivers broadband precision and mechanical stability under frequent mating.

Consistent Signal Integrity

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 2-hole flange mount RF connector maintains accurate phase alignment and low return loss.

Material and Compliance

The 2.92 mm male flange connector is made of stainless steel with gold-plated beryllium copper contacts, fully REACH and RoHS certified.

Typical Applications

Commonly used in precision instrumentation and 2-hole flange mount modules requiring compact broadband interconnects.

Female Version

Use with the 2.92 mm female 2-hole flange mount RF connector – Model 2.92-KFD27. Visit our 2.92 mm series in the RF Connector Catalog.
