2.92mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.46mm Pin Diameter

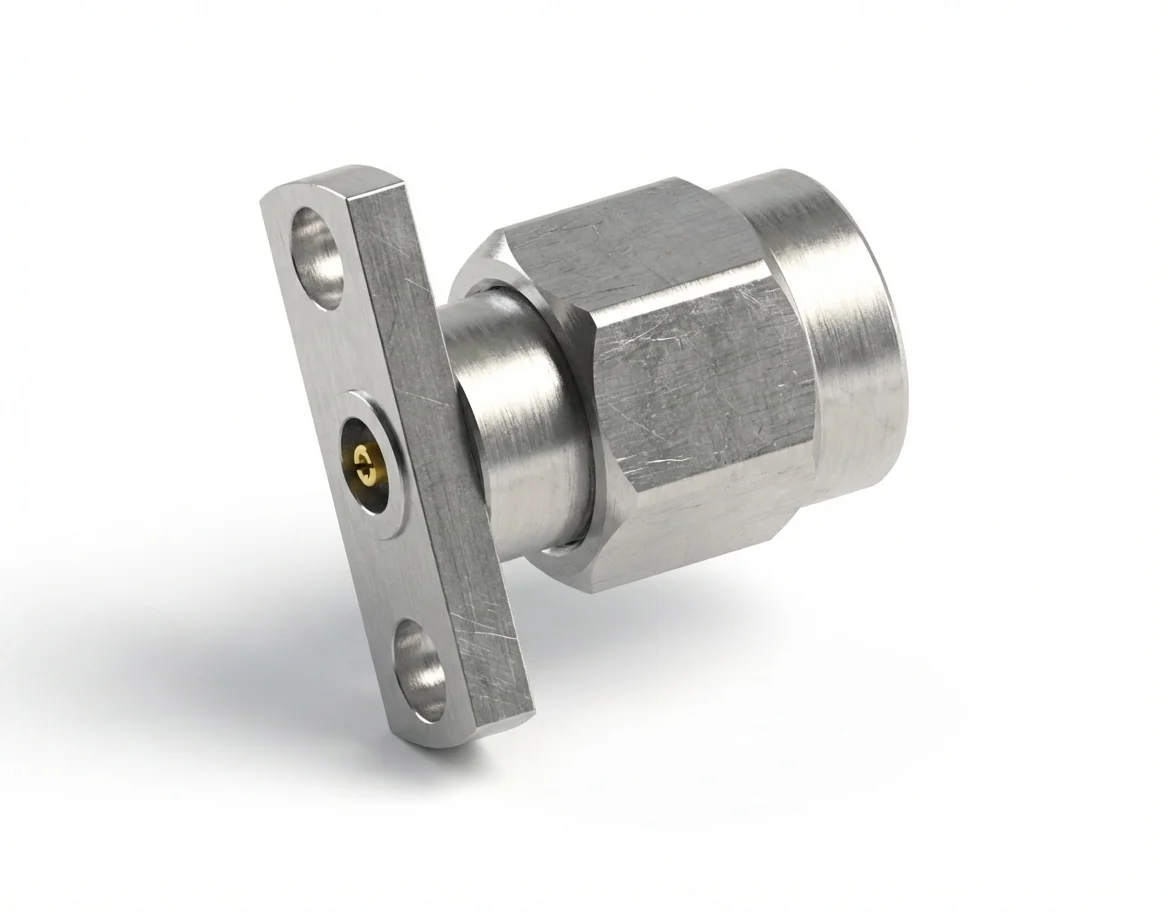

2.92mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD24

The 2.92 mm male 2-hole flange mount RF connector with a 0.46 mm pin and 10.2 mm hole spacing is built for robust broadband operation up to 40 GHz. This field-replaceable connector combines mechanical durability with electrical precision.

Performance and Reliability

Achieving VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 2-hole flange mount RF connector ensures minimal signal loss and stable return loss throughout its operating range.

Mechanical Design and Compliance

Fabricated from stainless steel and gold-plated beryllium copper, the 2.92 mm male flange connector is fully REACH and RoHS certified.

Typical Applications

Commonly used in microwave test benches and 2-hole flange mount RF modules requiring reliable repeated mating.

Mirror Female Connector

Combine with the 2.92 mm female 2-hole flange mount RF connector – Model 2.92-KFD24. Browse our 2.92 mm RF connector collection in the RF Connector Catalog.
