2.92mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.46mm Pin Diameter

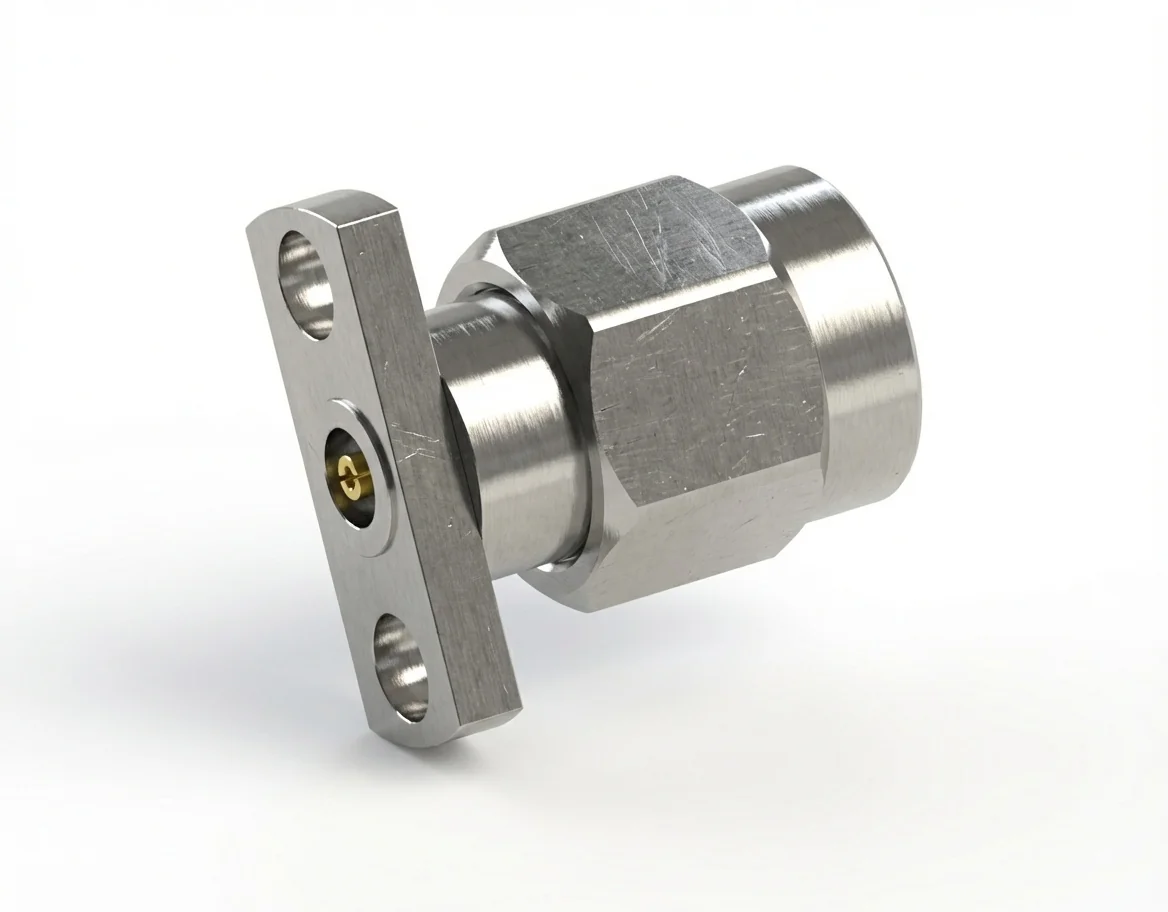

2.92mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD29

The 2.92 mm male 2-hole flange mount RF connector with a 0.46 mm pin and 9 mm hole spacing offers robust mechanical strength and superior electrical performance up to 40 GHz. This field-replaceable connector is ideal for high-frequency testing and measurement environments.

Stable Performance Across Bandwidth

Featuring VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 2-hole flange mount RF connector provides low-reflection signal transmission and tight impedance control.

Materials and Certifications

Stainless steel housing with gold-plated beryllium copper contacts ensures durability and complete REACH and RoHS compliance.

Integration and Application Areas

Suited for compact testing assemblies and 2-hole flange mount RF modules demanding mechanical stability and broadband accuracy.

Matching Female Version

Pair with the 2.92 mm female 2-hole flange mount RF connector – Model 2.92-KFD29. Discover our 2.92 mm series inside the RF Connector Catalog.
