2.92mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.51mm Pin Diameter

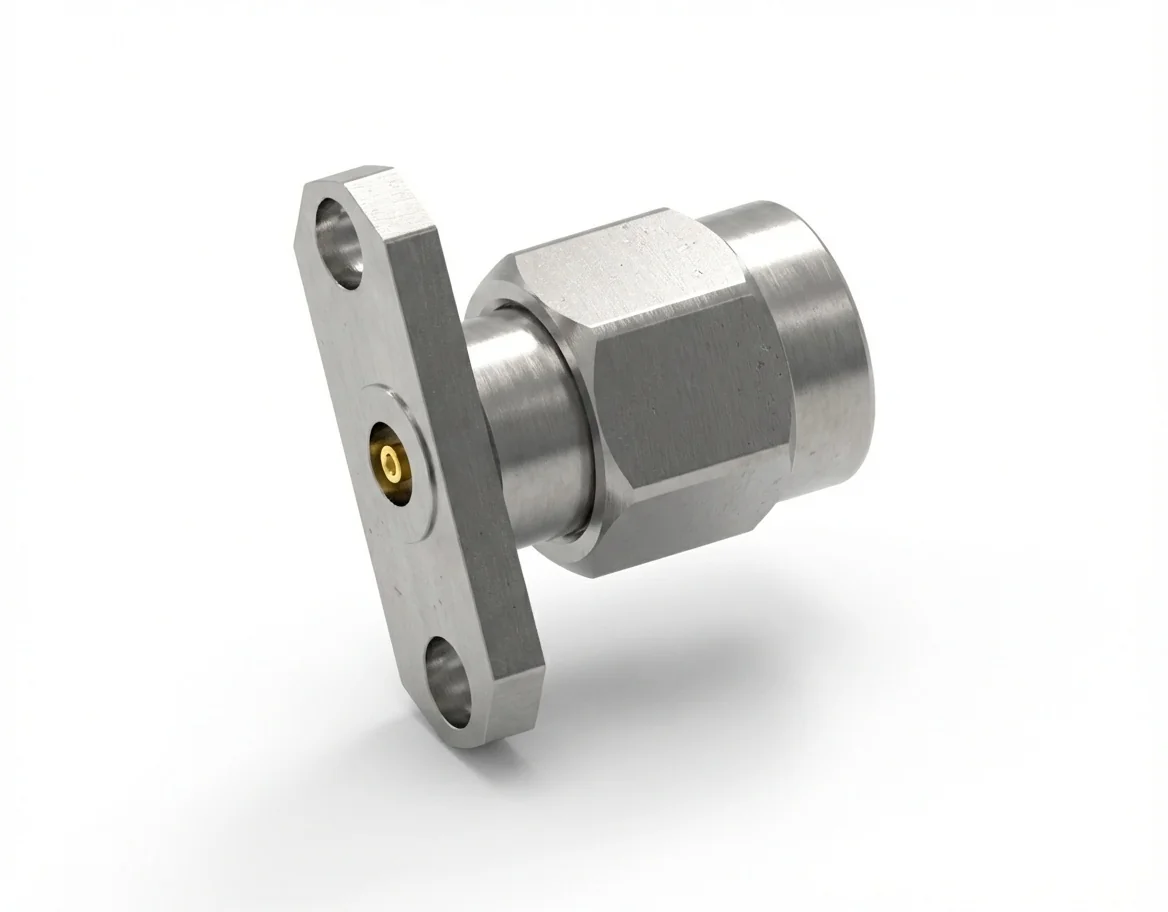

2.92mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD20

The 2.92 mm male 2-hole flange mount RF connector with a 0.51 mm pin and 12.22 mm hole spacing delivers a large contact area for high-power RF systems up to 40 GHz. This field-replaceable connector offers excellent signal stability and robust mechanical fit.

High-Power Broadband Performance

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 2-hole flange mount RF connector ensures low return loss and precise impedance control across wide bandwidths.

Mechanical and Material Reliability

Built from stainless steel and gold-plated beryllium copper, the 2.92 mm male flange connector is fully REACH and RoHS compliant for industrial applications.

Applications and Integration Options

Suited for laboratory fixtures and 2-hole flange mount assemblies that require broadband stability and mechanical strength.

Female Version

Match with the 2.92 mm female 2-hole flange mount RF connector – Model 2.92-K
