2.92mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.51mm Pin Diameter

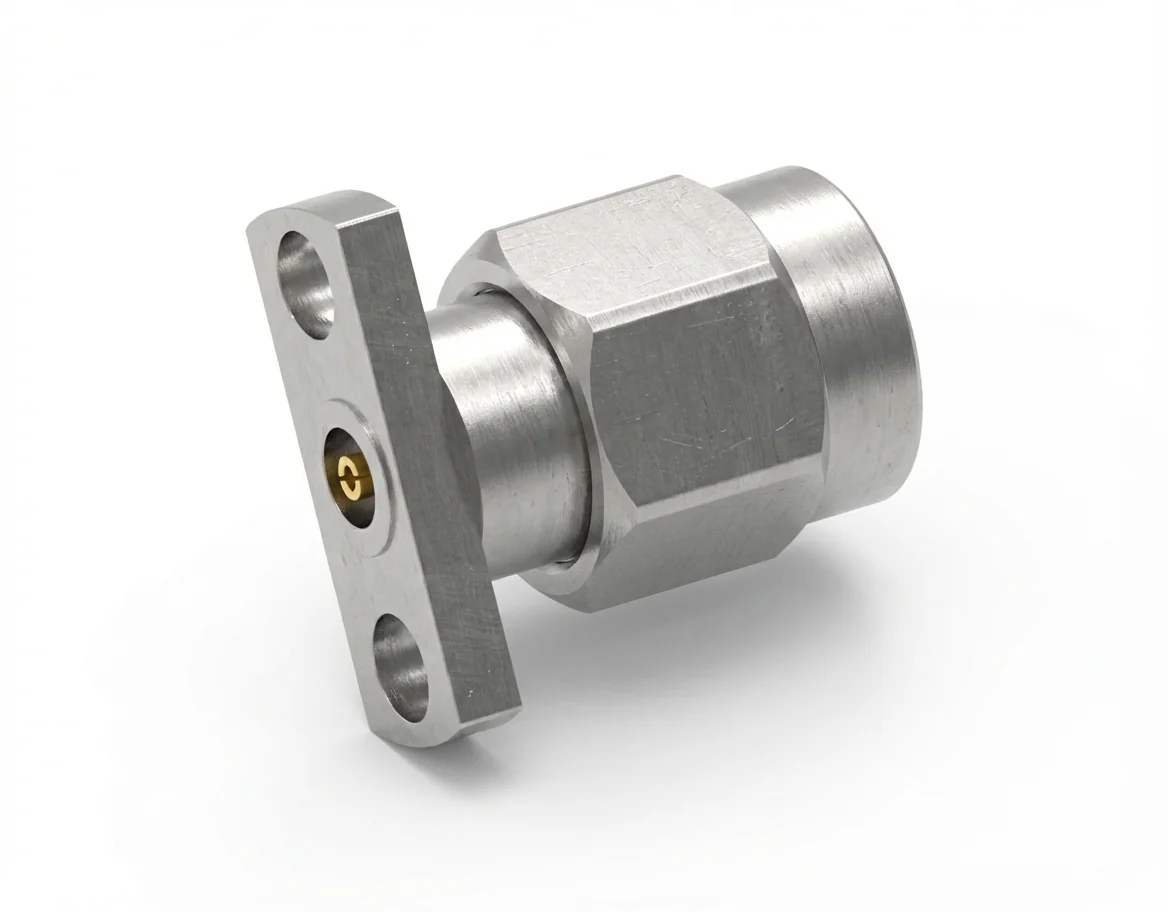

2.92mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD30

The 2.92 mm male 2-hole flange mount RF connector with a 0.51 mm pin and 9 mm hole spacing delivers a reliable broadband interface for microwave applications up to 40 GHz. This field-replaceable connector combines mechanical strength with precise electrical control.

High-Power Precision and Stability

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 2-hole flange mount RF connector ensures low-loss signal transfer and broadband stability.

Mechanical Design and Compliance

Constructed from stainless steel and gold-plated beryllium copper, the 2.92 mm male flange connector meets REACH and RoHS requirements.

Application Areas

Recommended for compact test equipment and 2-hole flange mount assemblies that demand precision and reliable repeatability.

Equivalent Female Connector

Pair with the 2.92 mm female 2-hole flange mount RF connector – Model 2.92-KFD30. View more options within our 2.92 mm RF connector family in the RF Connector Catalog</a
