2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.23mm Pin Diameter

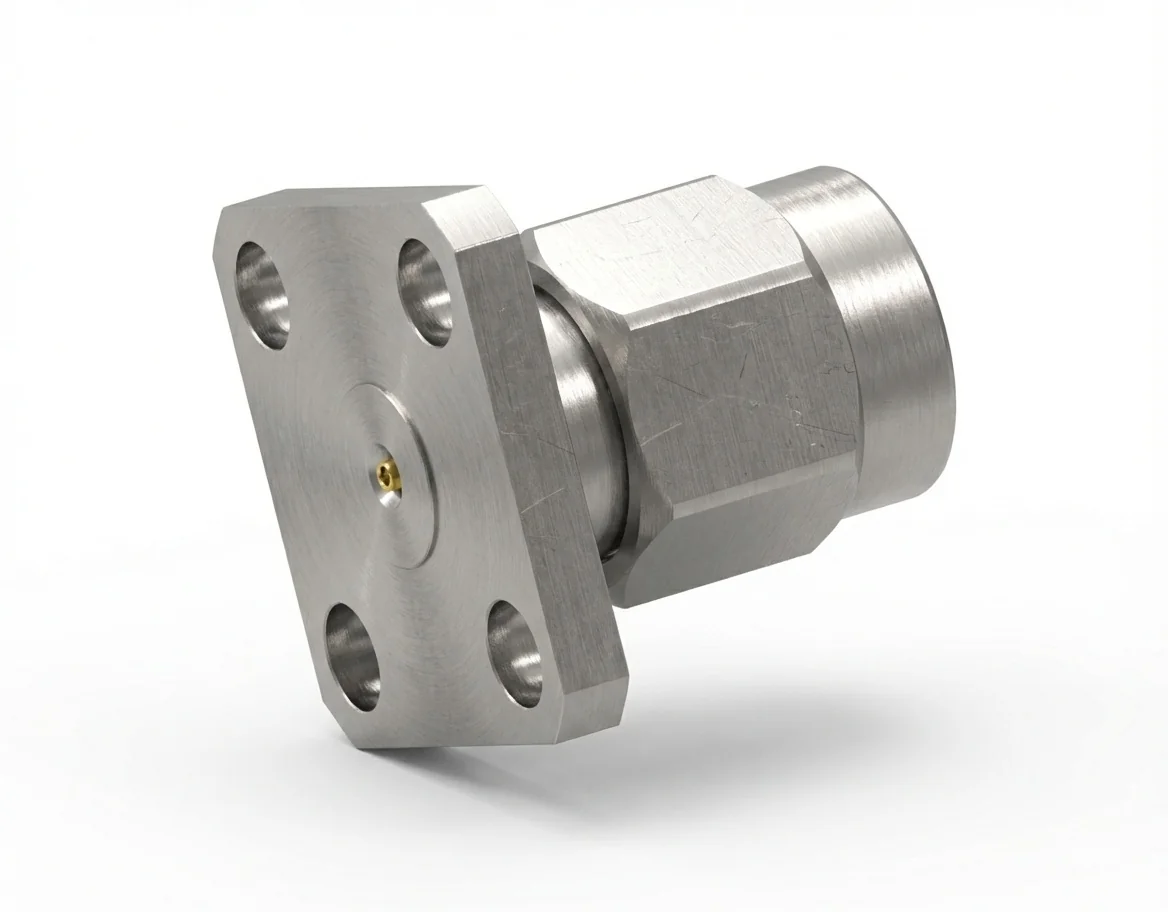

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD1

The 2.92 mm male 4-hole flange mount RF connector with a 0.23 mm pin and 8.64 mm hole spacing is built for ultra-precision broadband systems up to 40 GHz. Engineered for 50 Ω impedance, this field-replaceable connector guarantees low reflection and exceptional phase repeatability in laboratory environments.

Optimized for High-Frequency Accuracy

Delivering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector ensures consistent impedance matching and minimal loss even in compact setups.

Material Engineering and Standards

Fabricated from stainless steel and gold-plated beryllium copper, the 2.92 mm male flange connector is REACH and RoHS compliant and rated from −55 °C to +165 °C.

Applications

Designed for 4-hole flange mount assemblies, test adapters, and precision analyzers requiring repeatable high-frequency interfaces.

Female Equivalent

Pair with the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD1. Explore our 2.92 mm RF connector range in the RF Connector Catalog.
