2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.23mm Pin Diameter

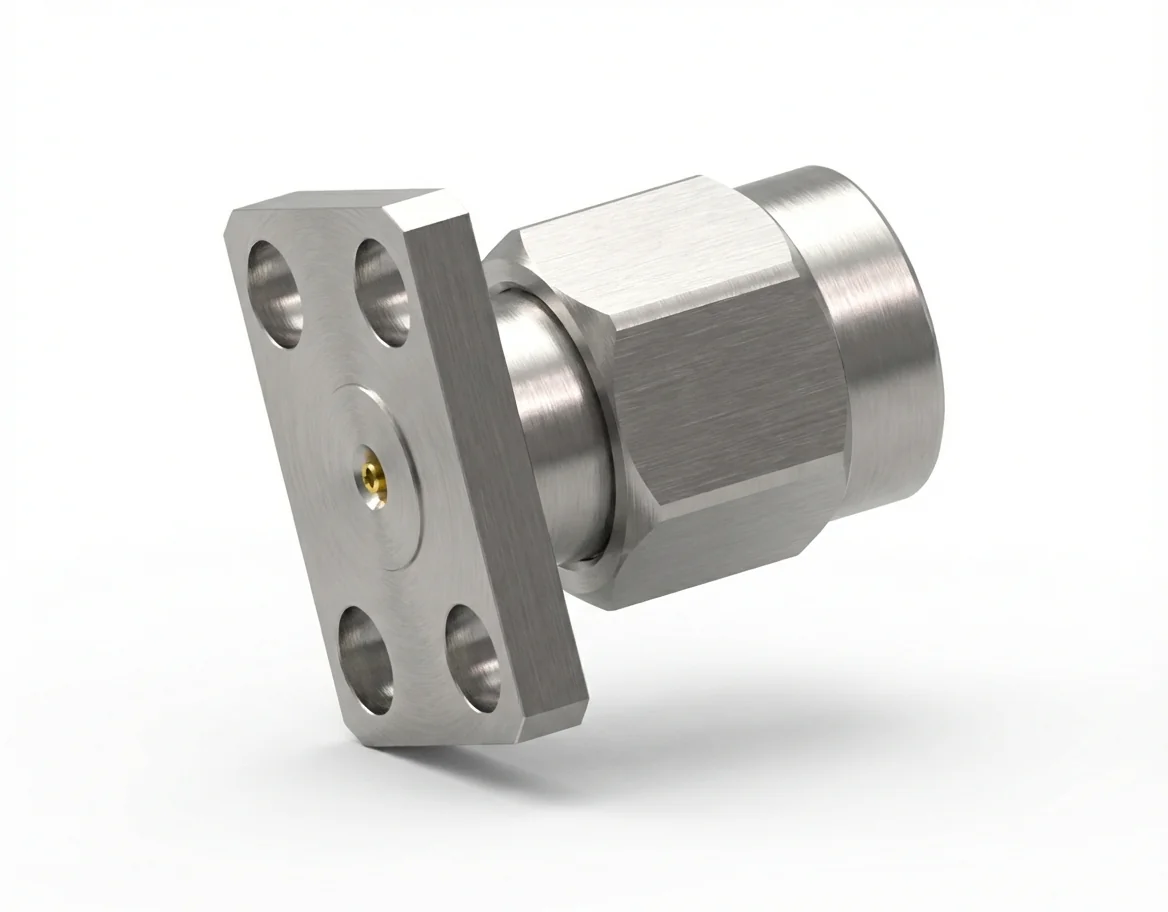

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD11

The 2.92 mm male 4-hole flange mount RF connector with a 0.23 mm pin and 5.64 mm hole spacing offers exceptional precision for miniature RF modules operating up to 40 GHz. This field-replaceable connector delivers low-loss broadband performance and superior mechanical repeatability.

Ultra-Compact High-Frequency Design

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector provides stable impedance and phase consistency for tight integration spaces.

Material Precision and Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm male flange connector is fully REACH and RoHS certified for global use.

Applications and Integration

Ideal for test instrumentation and 4-hole flange mount RF assemblies where miniaturization and signal stability are critical.

Mirror Female Connector

Pair with the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD11. Discover the full 2.92 mm RF connector series in our RF Connector Catalog.
