2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.23mm Pin Diameter

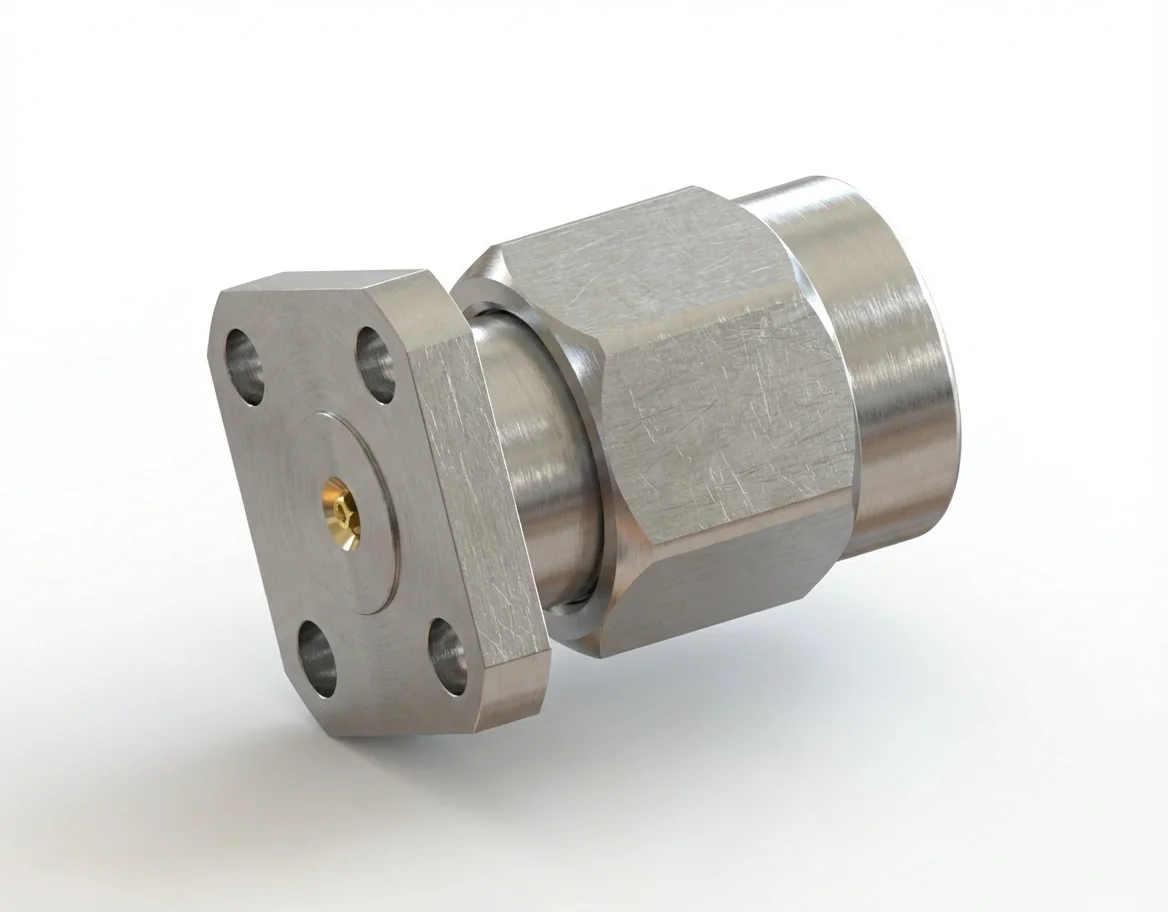

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD6

The 2.92 mm male 4-hole flange mount RF connector with a 0.23 mm pin and 6.35 mm hole spacing provides ultra-compact precision for broadband test systems up to 40 GHz. Engineered for 50 Ω impedance, this field-replaceable connector delivers minimal signal reflection and stable electrical performance in tight layouts.

Compact Design for High-Frequency Accuracy

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector guarantees consistent phase response. The 0.23 mm pin supports fine-alignment applications where microwave stability is critical.

Material Integrity and Compliance

Manufactured from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm male flange connector is fully REACH and RoHS compliant for global environmental standards.

Application Focus

Designed for precision instrumentation and 4-hole flange mount RF modules where compactness and repeatability are required.

Mirror Female Connector

Pair with the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD6. See the 2.92 mm RF connector series in our RF Connector Catalog.
