2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.38mm Pin Diameter

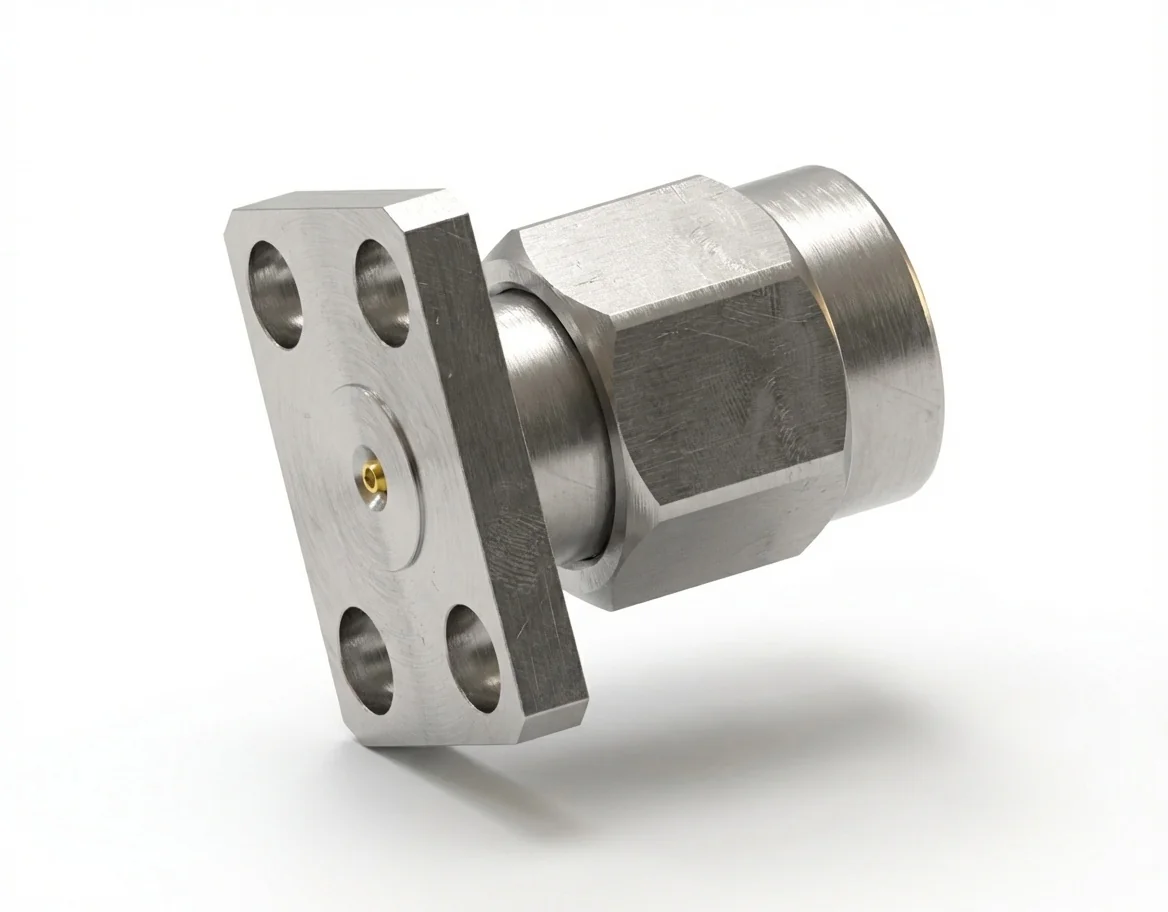

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD13

The 2.92 mm male 4-hole flange mount RF connector with a 0.38 mm pin and 5.64 mm hole spacing delivers precise broadband connectivity up to 40 GHz. This field-replaceable connector is optimized for reliable high-density test platforms.

Electrical Accuracy and Low Reflection

Offering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector ensures clean signal transmission and excellent return loss control.

Material Quality and Sustainability

Manufactured from stainless steel and gold-plated beryllium copper, the 2.92 mm male flange connector is fully REACH and RoHS certified for sustainable production and use.

Compact Integration Applications

Best suited for modular test devices and 4-hole flange mount RF modules with strict size and alignment requirements.

Corresponding Female Version

Pair with the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD13. Find more in the 2.92 mm series on our RF Connector Catalog.
