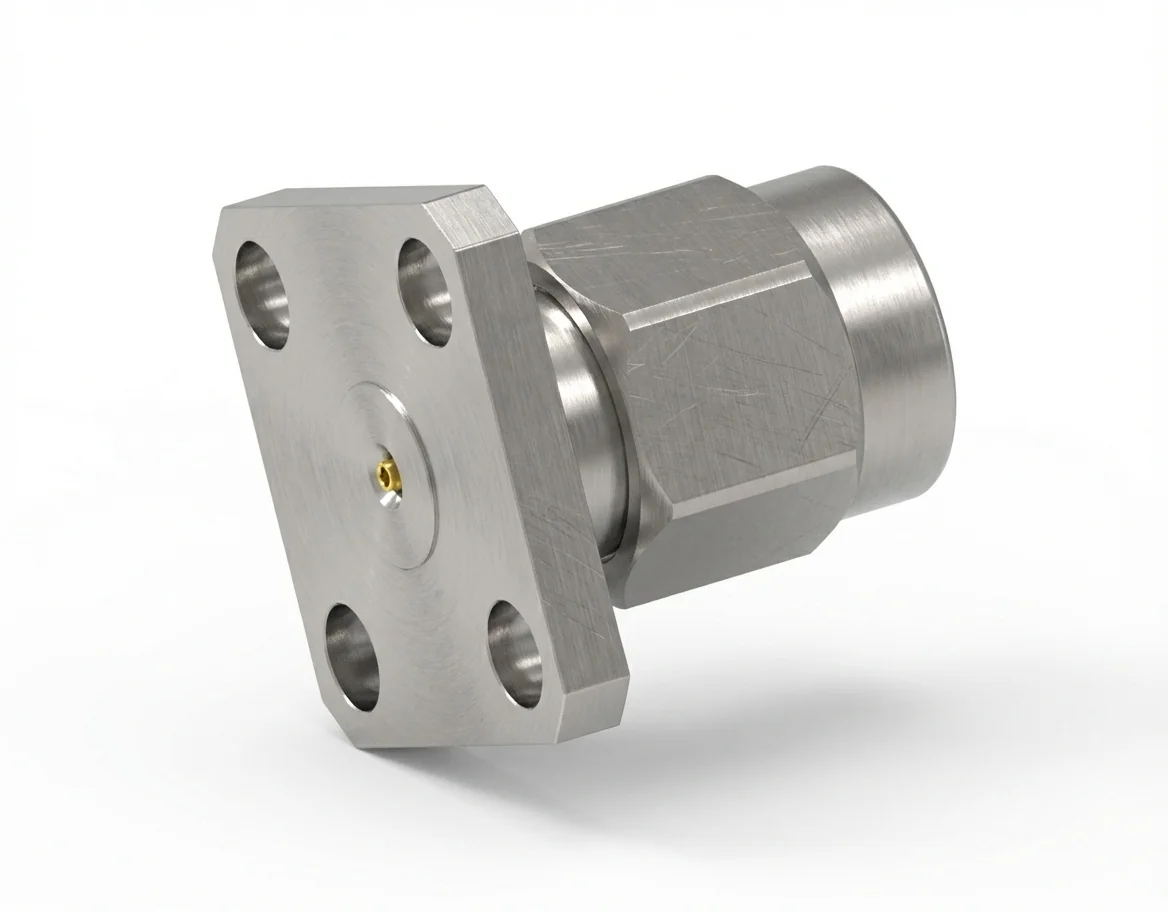

2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.38mm Pin Diameter

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD3

The 2.92 mm male 4-hole flange mount RF connector with a 0.38 mm pin and 8.64 mm hole spacing combines precise geometry with high-power capability. Supporting 50 Ω systems up to 40 GHz, this field-replaceable connector ensures stable broadband connectivity under frequent use.

Broadband Integrity and Repeatability

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector guarantees consistent impedance and return-loss control for test applications.

Mechanical Design and Compliance

The 2.92 mm male flange connector uses stainless steel and gold-plated beryllium copper contacts, fully REACH and RoHS compliant for environmental assurance.

Applications and Integration

Suited for precision test cables, vector network analyzers, and 4-hole flange mount RF assemblies requiring low-loss connections.

Mirror Female Connector

Pair with the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD3. Find related connectors in our 2.92 mm series and the RF Connector Catalog.
