2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.3mm Pin Diameter

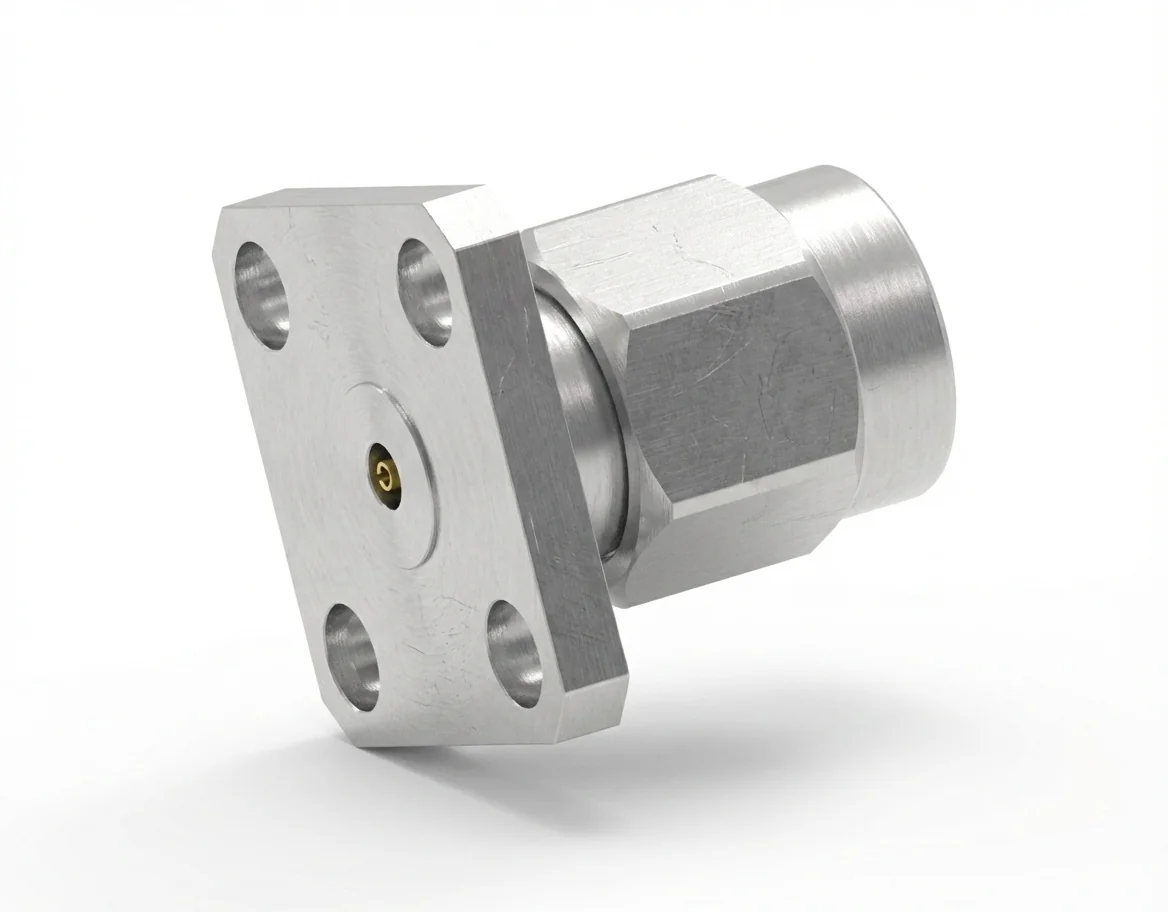

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD2

The 2.92 mm male 4-hole flange mount RF connector with a 0.30 mm pin and 8.64 mm hole spacing delivers consistent mechanical strength and broadband precision up to 40 GHz. This field-replaceable connector maintains low-loss transmission in high-density test systems.

Performance and Electrical Consistency

Offering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector guarantees stable impedance and phase linearity across broadband networks.

Material Quality and Compliance

Made of stainless steel with gold-plated beryllium copper contacts, the 2.92 mm male flange connector is REACH and RoHS certified for sustainable and reliable performance.

Applications in Modular Assemblies

Ideal for microwave test fixtures and 4-hole flange mount RF modules requiring durable and repeatable interfaces.

Female Counterpart

Compatible with the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD2. Browse the 2.92 mm series in our RF Connector Catalog.
