2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.3mm Pin Diameter

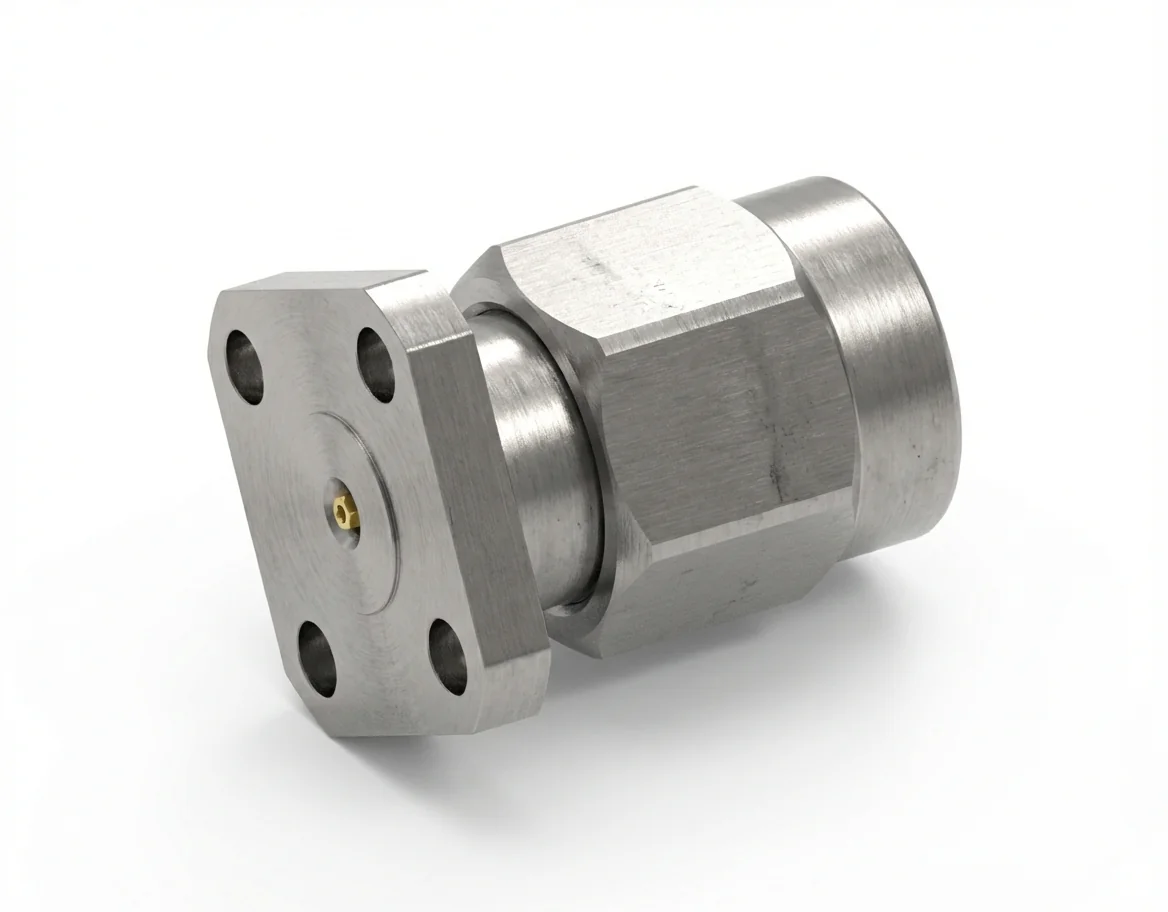

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD7

The 2.92 mm male 4-hole flange mount RF connector with a 0.30 mm pin and 6.35 mm hole spacing is crafted for robust broadband connections up to 40 GHz. This field-replaceable connector offers exceptional repeatability for dense RF environments and test equipment.

Reliable Signal Transmission

Featuring VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector maintains low return loss and high phase integrity through frequent mating cycles.

Mechanical Strength and Durability

The 2.92 mm male flange connector is machined from stainless steel and uses gold-plated beryllium copper contacts, fully REACH and RoHS compliant to ensure longevity and safety.

Applications and Integration

Perfect for modular test systems and 4-hole flange mount assemblies that demand precise electrical fit and mechanical consistency.

Female Counterpart

Use with the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD7. Explore the 2.92 mm RF connector range in our RF Connector Catalog.
