2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.46mm Pin Diameter

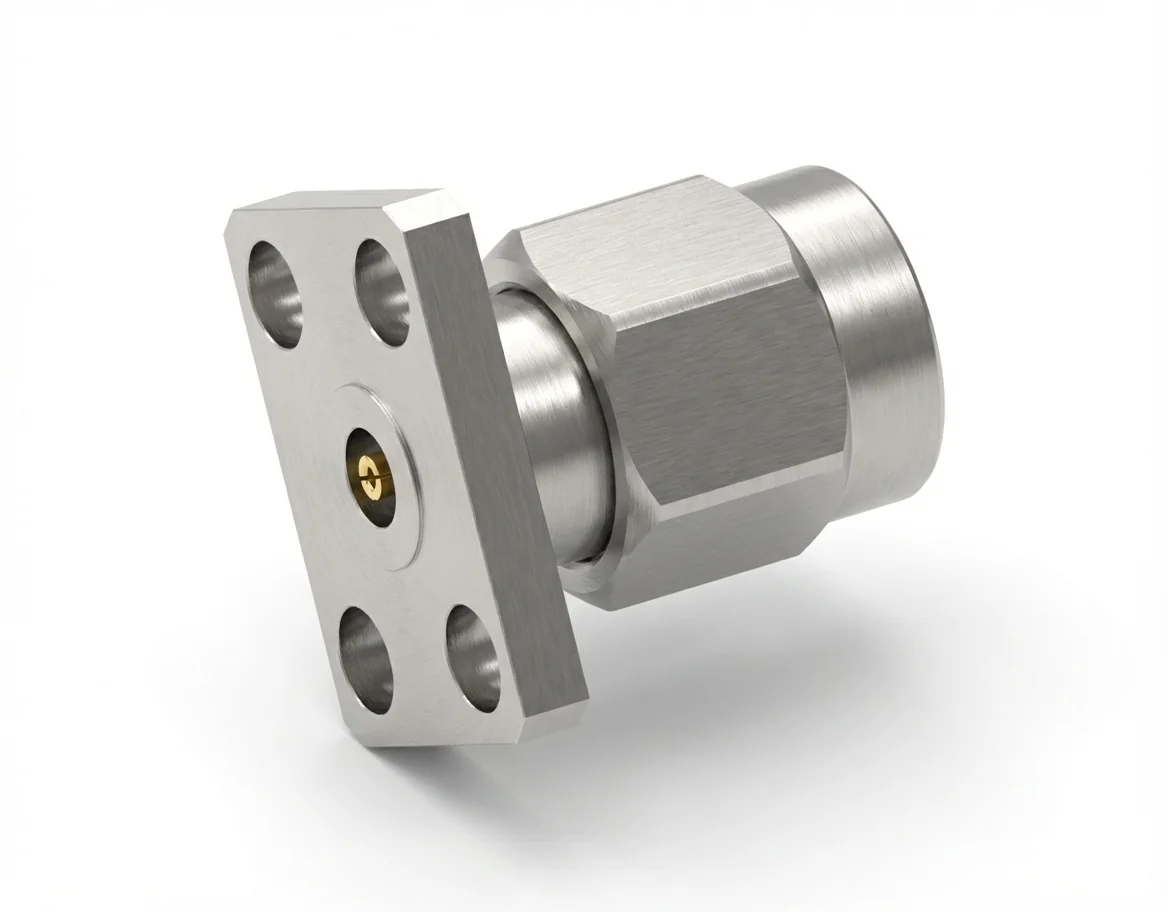

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD14

The 2.92 mm male 4-hole flange mount RF connector with a 0.46 mm pin and 5.64 mm hole spacing is built for robust high-frequency applications up to 40 GHz. This field-replaceable connector provides superior mechanical fit and broadband stability.

Mechanical Endurance and Electrical Precision

Delivering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector ensures long-term stability and low signal distortion.

Material Compliance and Longevity

The 2.92 mm male flange connector uses stainless steel and gold-plated beryllium copper, meeting all REACH and RoHS standards.

Use in Testing and Measurement

Perfect for test adapters and 4-hole flange mount assemblies requiring high durability and precise alignment.

Female Equivalent Connector

Use alongside the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD14. Explore the full 2.92 mm RF connector series in our RF Connector Catalog.
