2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.46mm Pin Diameter

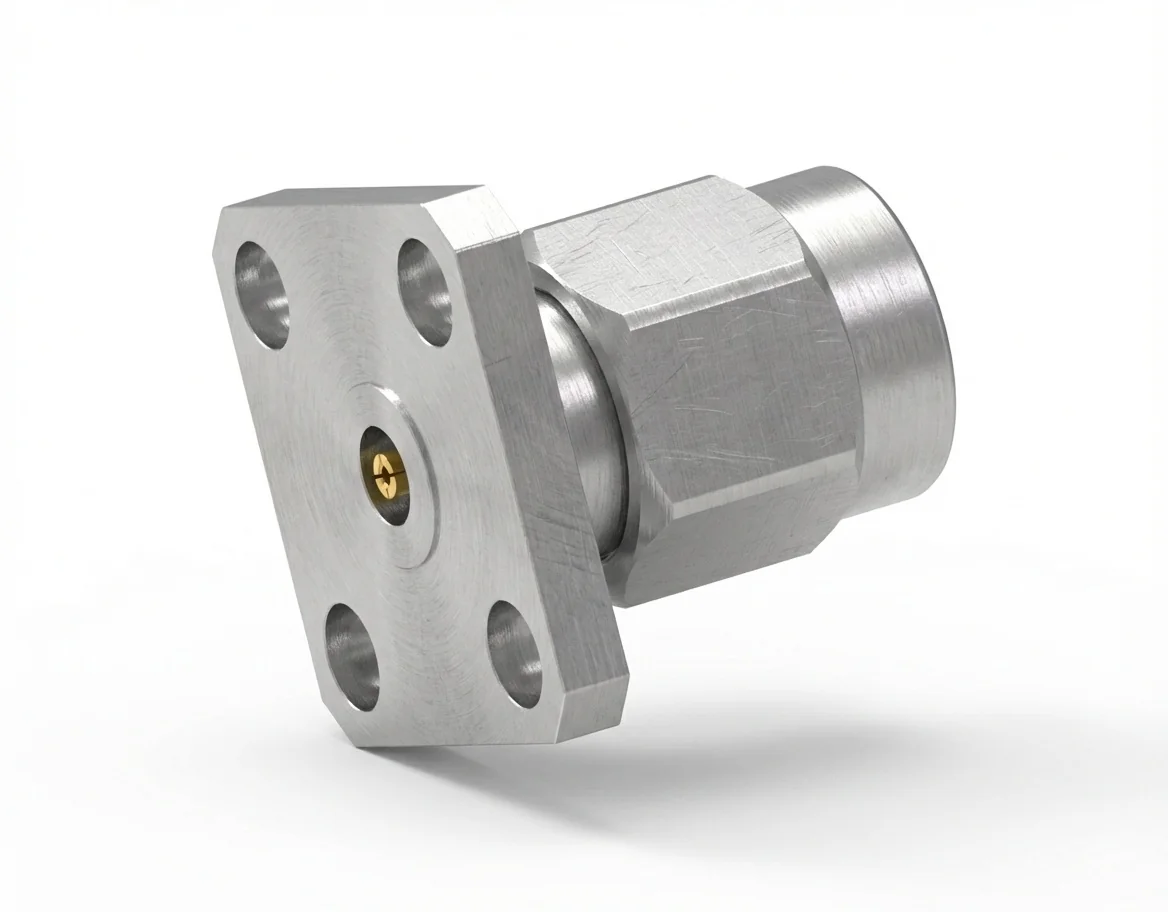

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD4

The 2.92 mm male 4-hole flange mount RF connector with a 0.46 mm pin and 8.64 mm hole spacing is designed for mid-power precision applications up to 40 GHz. This field-replaceable connector offers robust mechanical fit and repeatable RF performance.

High-Power Signal Control

Achieving VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector provides low-reflection connectivity and enhanced pin stability for demanding measurement systems.

Construction and Compliance

Made from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm male flange connector is fully REACH and RoHS certified for global compliance.

Practical Applications

Used in precision measurement instruments and 4-hole flange mount assemblies that demand stability under repeated mating cycles.

Equivalent Female Version

Combine with the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD4. See the complete 2.92 mm RF connector series in our RF Connector Catalog.
