2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.46mm Pin Diameter

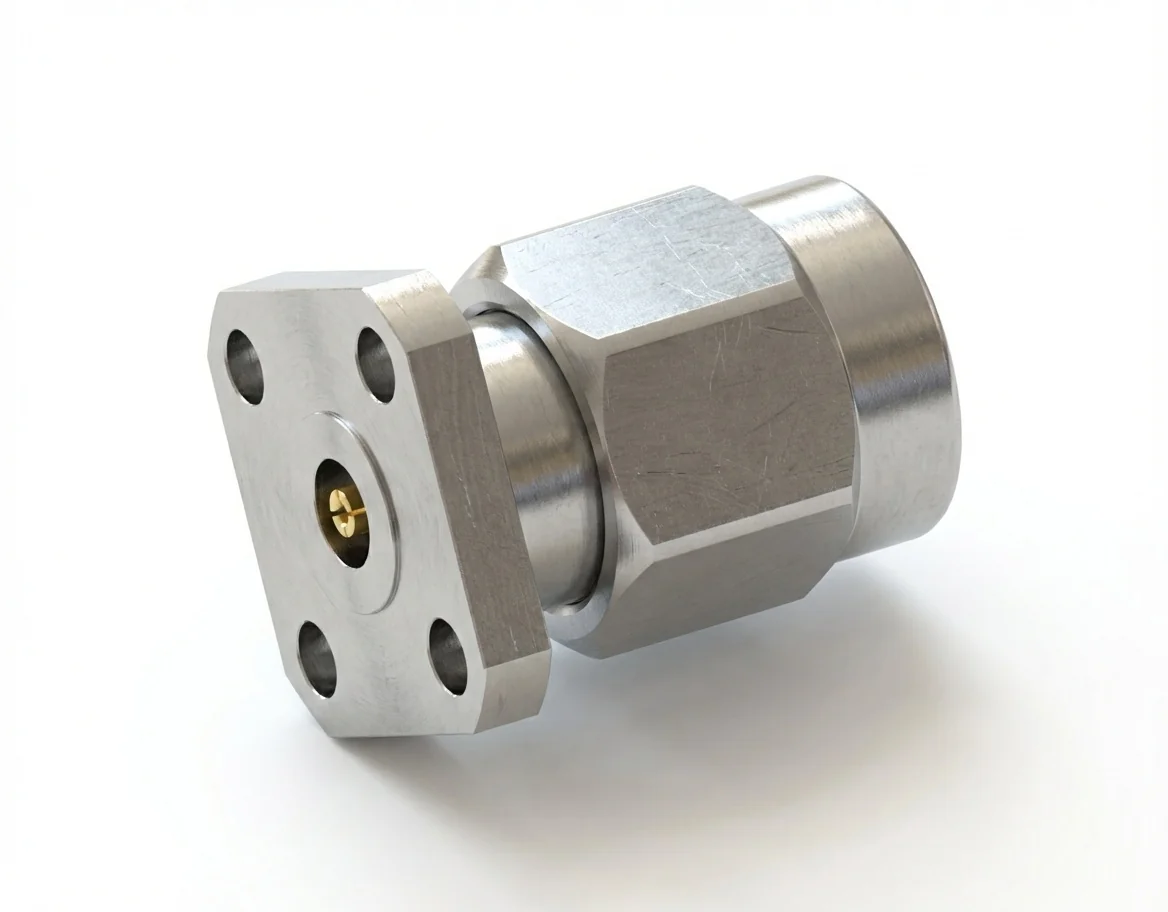

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD9

The 2.92 mm male 4-hole flange mount RF connector with a 0.46 mm pin and 6.35 mm hole spacing is built for mid-power microwave applications requiring mechanical strength and electrical precision up to 40 GHz. This field-replaceable connector delivers long-term stability under repetitive use.

Stable Broadband Performance

Featuring VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector supports accurate signal transmission and consistent impedance control.

Mechanical Resilience and Compliance

The 2.92 mm male flange connector is precision-machined from stainless steel with gold-plated beryllium copper contacts and is fully REACH and RoHS compliant.

Integration and Applications

Commonly used in calibration equipment and 4-hole flange mount RF modules that require mechanically secure high-frequency interfaces.

Mirror Female Connector

Match with the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD9. See more options in our 2.92 mm RF connector series within the RF Connector Catalog.
