2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.51mm Pin Diameter

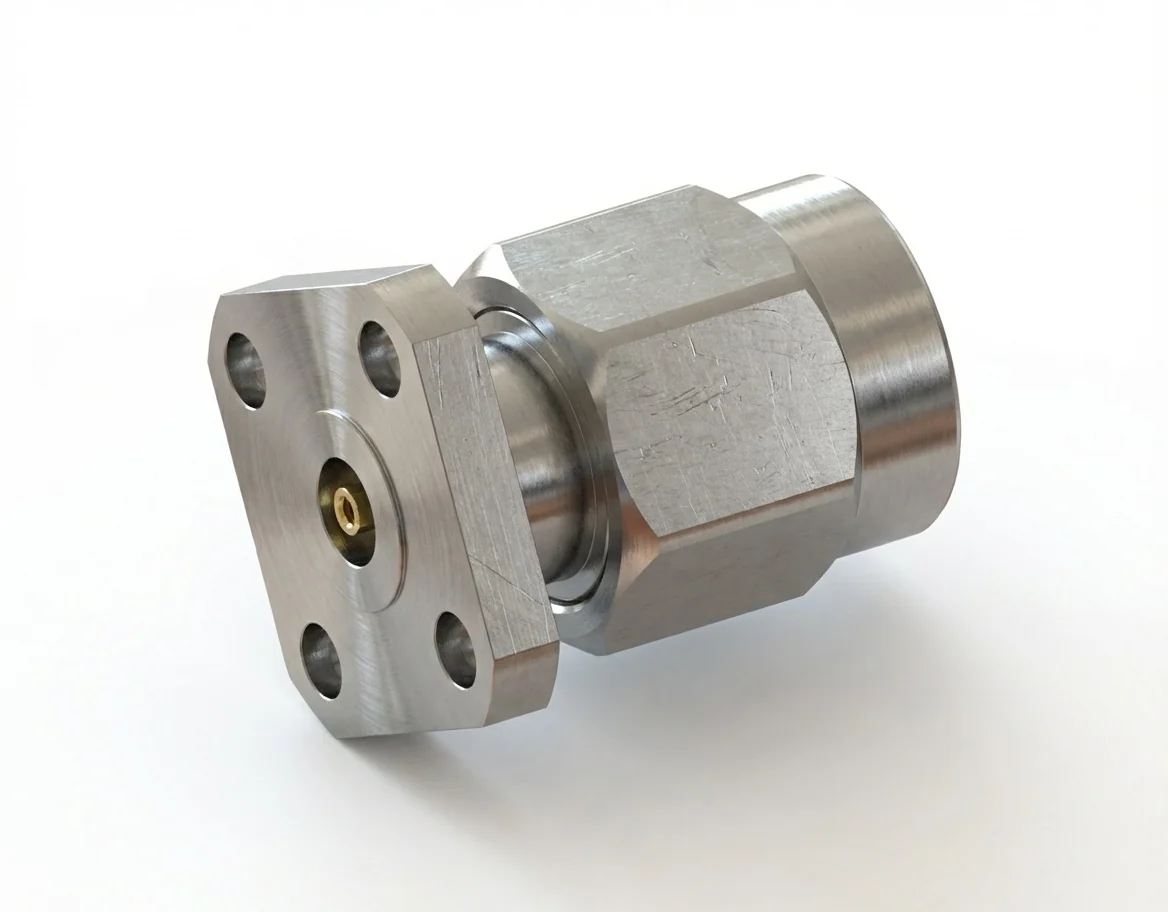

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD10

The 2.92 mm male 4-hole flange mount RF connector with a 0.51 mm pin and 6.35 mm hole spacing delivers maximum contact surface for stable high-power transmission up to 40 GHz. This field-replaceable connector ensures repeatable performance and robust mechanical fit.

High-Power Electrical Precision

Providing VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector delivers low-loss performance and excellent return loss control.

Construction and Environmental Compliance

Manufactured from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm male flange connector is fully REACH and RoHS certified.

Applications and Usage

Designed for precision testing and 4-hole flange mount assemblies where broadband stability and mechanical torque strength are critical.

Equivalent Female Version

Pair with the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD10. Find related models in the 2.92 mm RF connector section of our RF Connector Catalog.
