2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.51mm Pin Diameter

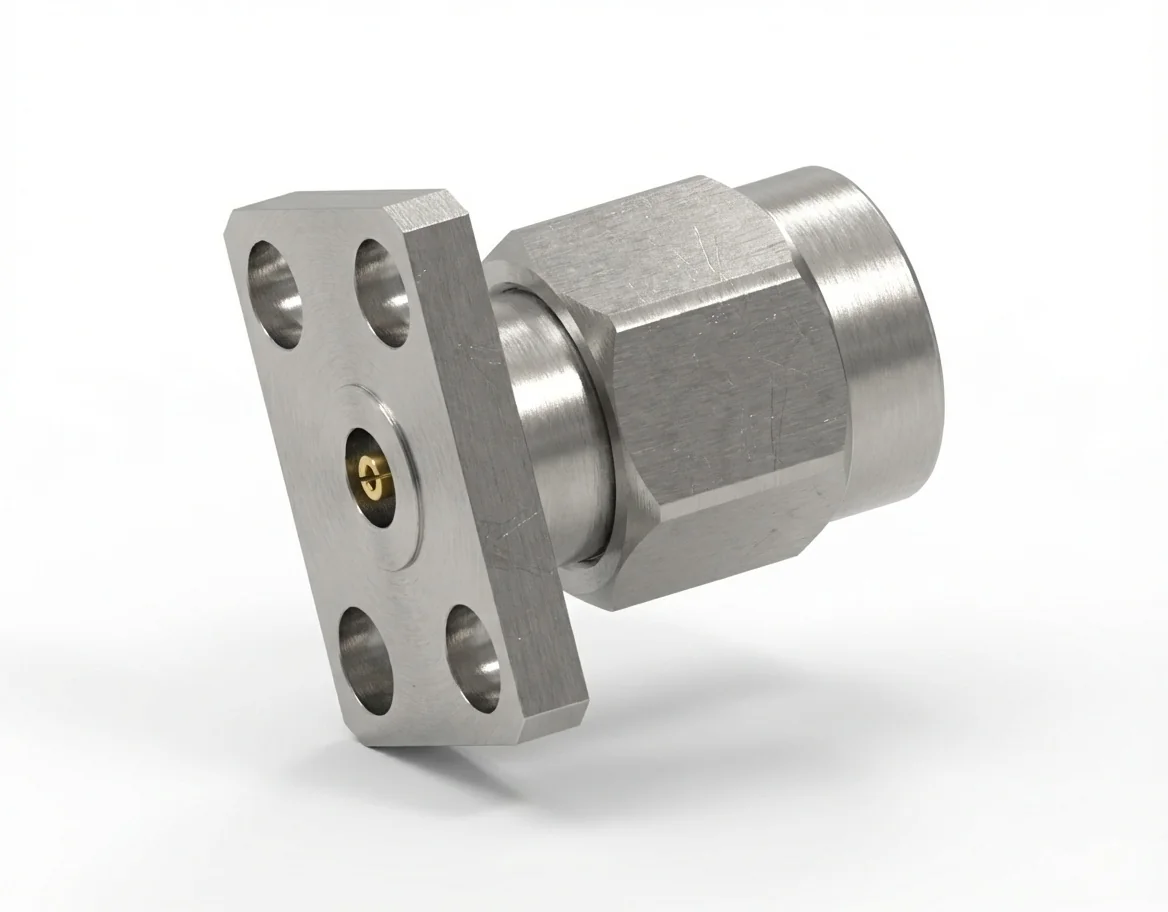

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD15

The 2.92 mm male 4-hole flange mount RF connector with a 0.51 mm pin and 5.64 mm hole spacing provides superior contact area for high-power applications up to 40 GHz. This field-replaceable connector combines mechanical strength with broadband efficiency.

High-Power Signal Integrity

Rated for VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector ensures stable broadband performance with excellent return-loss control.

Durability and Material Quality

Made from stainless steel and gold-plated beryllium copper, the 2.92 mm male flange connector is fully REACH and RoHS certified for industrial applications.

Integration and Practical Use

Suited for high-frequency test rigs and 4-hole flange mount RF devices requiring strong mechanical bond and repeatable precision.

Matching Female Version

Pair with the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD15. View more options within the 2.92 mm RF connector category of our RF Connector Catalog.
