2.92mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.51mm Pin Diameter

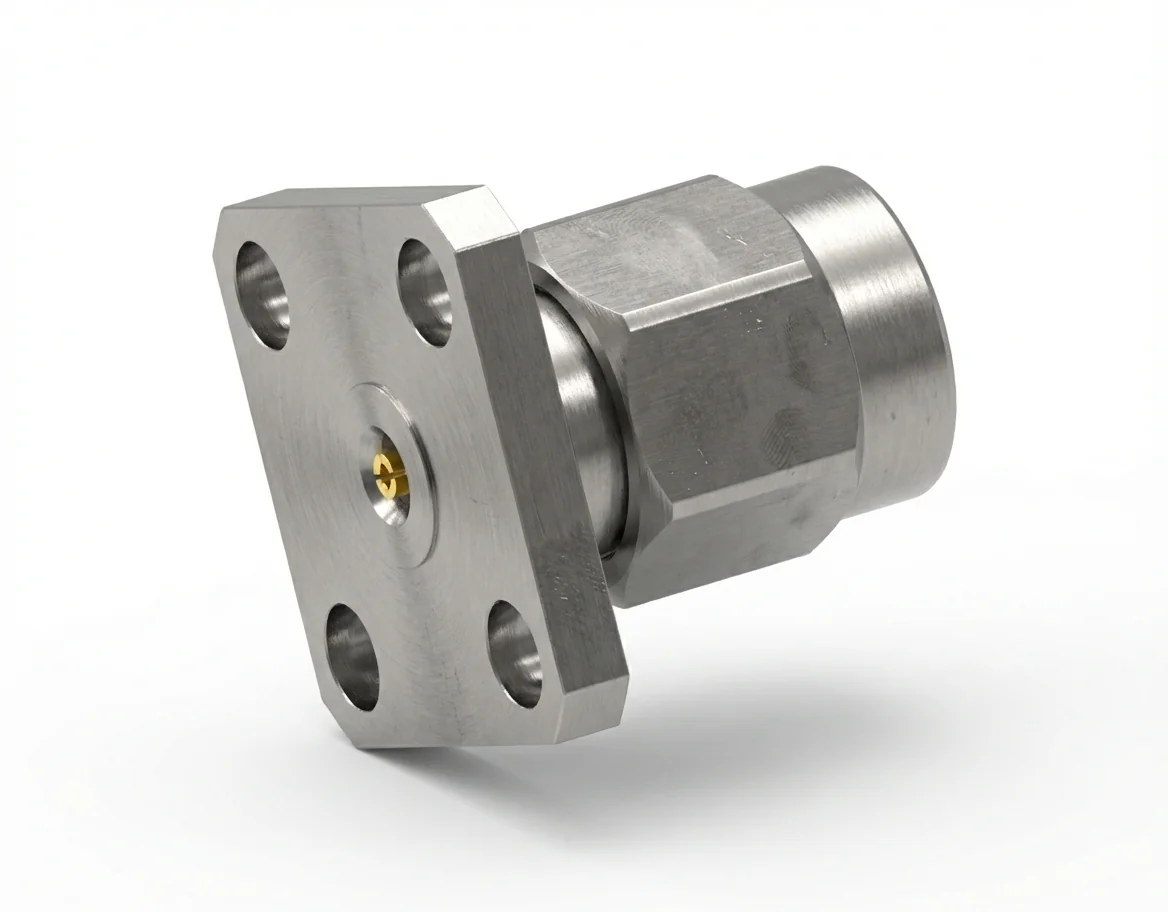

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD5

The 2.92 mm male 4-hole flange mount RF connector with a 0.51 mm pin and 8.64 mm hole spacing is engineered for heavy-duty RF applications requiring maximum stability and precision up to 40 GHz. This field-replaceable connector delivers durable, low-loss connectivity for laboratory and production use.

Electrical and Mechanical Stability

With VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 4-hole flange mount RF connector ensures reliable signal continuity and excellent return loss performance.

Material Selection and Certification

The 2.92 mm male flange connector features stainless steel housing and gold-plated beryllium copper contacts, fully REACH and RoHS compliant for global manufacturing standards.

Where It Is Used

Perfect for high-frequency testing racks and 4-hole flange mount RF modules in broadband and microwave applications.

Mirror Female Connector

Use alongside the 2.92 mm female 4-hole flange mount RF connector – Model 2.92-KFD5. Find the entire 2.92 mm RF connector range in our RF Connector Catalog.
