2.92mm Male 4-Hole Flange Mount RF Connector – Field replaceable, 6.35mm Hole Spacing, 0.38mm Pin Diameter

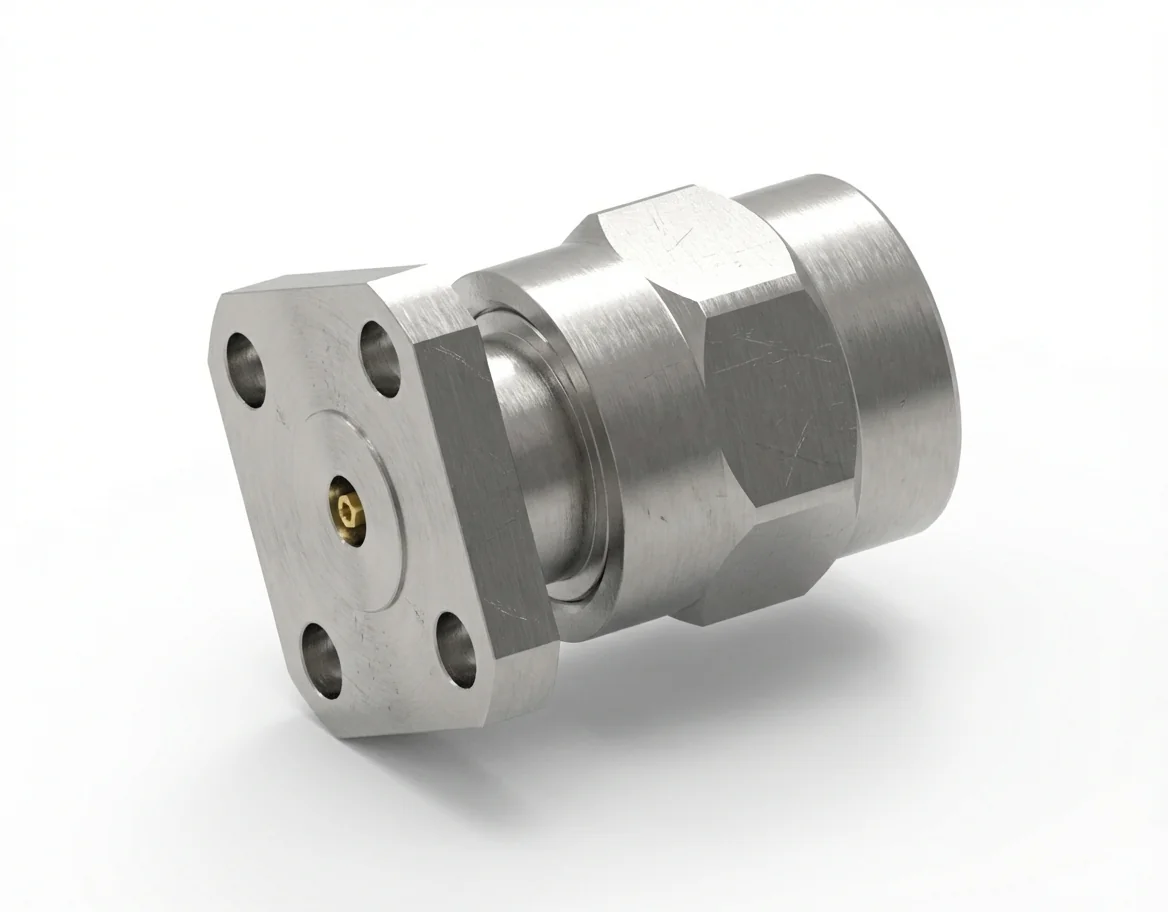

2.92mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD31

The 2.92mm male 4-hole flange mount RF connector with a 0.38 mm pin and 6.35 mm hole spacing delivers precise electrical alignment and robust mechanical stability for high-frequency measurement systems. Operating at 50 Ω impedance from DC to 40 GHz, this field-replaceable connector ensures consistent performance in precision test and microwave assemblies.

Exceptional Electrical Accuracy

Achieving VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92mm male 4-hole flange mount RF connector guarantees low reflection, high return-loss control, and stable impedance matching across broadband frequencies for repeatable test results.

Material Strength and Environmental Compliance

Manufactured from passivated stainless steel with gold-plated beryllium copper contacts, the 2.92mm male flange connector provides superior conductivity, corrosion resistance, and long-term reliability. Fully REACH and RoHS compliant, it maintains stable electrical performance across −55 °C to +165 °C operating conditions.

Applications in Precision Microwave Systems

The 6.35 mm flange pattern facilitates integration within 4-hole flange mount RF connectors used in vector network analyzers, calibration kits, and high-frequency instrumentation requiring repeatable precision alignment.

Customizable RF Connector Solutions

Mechanc offers a complete portfolio of 2.92mm RF connectors tailored for laboratory, aerospace, and communication testing environments. Browse our RF Connector Catalog to discover additional field-replaceable models and high-frequency interconnect solutions.
