2.92mm Male Straight RF Connector – Fits CFS220 Coaxial Cable

2.92mm Male Straight RF Connector – Cable Mount, Model 2.92-JCFS220-1

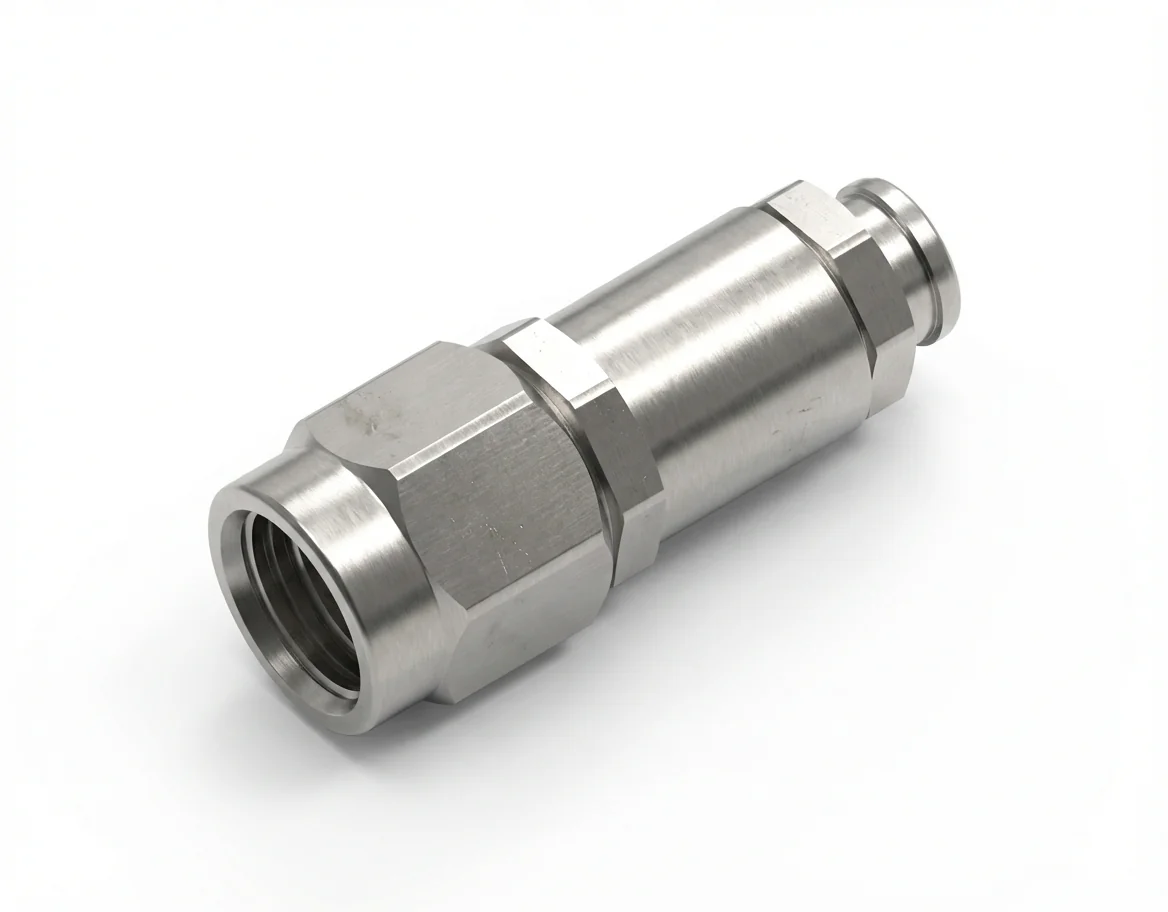

The 2.92 mm male straight cable-mount RF connector, model 2.92-JCFS220-1, is precision-engineered to fit the CFS220 ultra-low-loss, phase-stable coaxial cable. Rated for operation from DC to 40 GHz with a 50 Ω impedance, VSWR ≤ 1.17, and insertion loss ≤ 0.06 √f dB, it delivers exceptional signal fidelity and phase stability for microwave metrology and vector network analysis. Explore the 2.92 mm connector family for related precision interfaces.

Broadband Accuracy and Electrical Integrity

The 2.92-JCFS220-1 connector maintains tight impedance control and low reflection across the full DC–40 GHz range. Its precision interface ensures stable return loss and repeatable electrical behavior, supporting high-accuracy calibration and low-loss signal transmission in demanding test setups.

Durability and Material Performance

Constructed from passivated stainless steel and equipped with a gold-plated beryllium-copper center contact, the 2.92-JCFS220-1 combines mechanical robustness with corrosion resistance and consistent electrical continuity. Its tight machining tolerances ensure stable impedance characteristics and long connector lifespan. Discover additional high-frequency designs within our RF connectors category.

Termination Design and Mechanical Precision

The solder-type cable-mount termination guarantees accurate dielectric alignment and strain relief, preserving signal integrity under vibration or temperature variation. This structure supports repeatable broadband performance in laboratory and production environments. Find related assemblies in cable-mount connectors.

Integration with Ultra-Low-Loss Coaxial Cables

When paired with the CFS220 ultra-low-loss, phase-stable coaxial cable, the 2.92-JCFS220-1 connector achieves low attenuation, excellent phase tracking, and reliable broadband response—ideal for vector network analyzers, precision calibration systems, and high-frequency metrology applications.

For the corresponding female version, see the mirror part:

2.92mm Female Straight RF Connector – Fits CFS220 Coaxial Cable, Model 2.92-KCFS220-1
.
