| Quantity | Price |
| 1 - 99 | 23,00 $ |
| 100 - 199 | 22,54 $ |
| 200 - 499 | 22,31 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

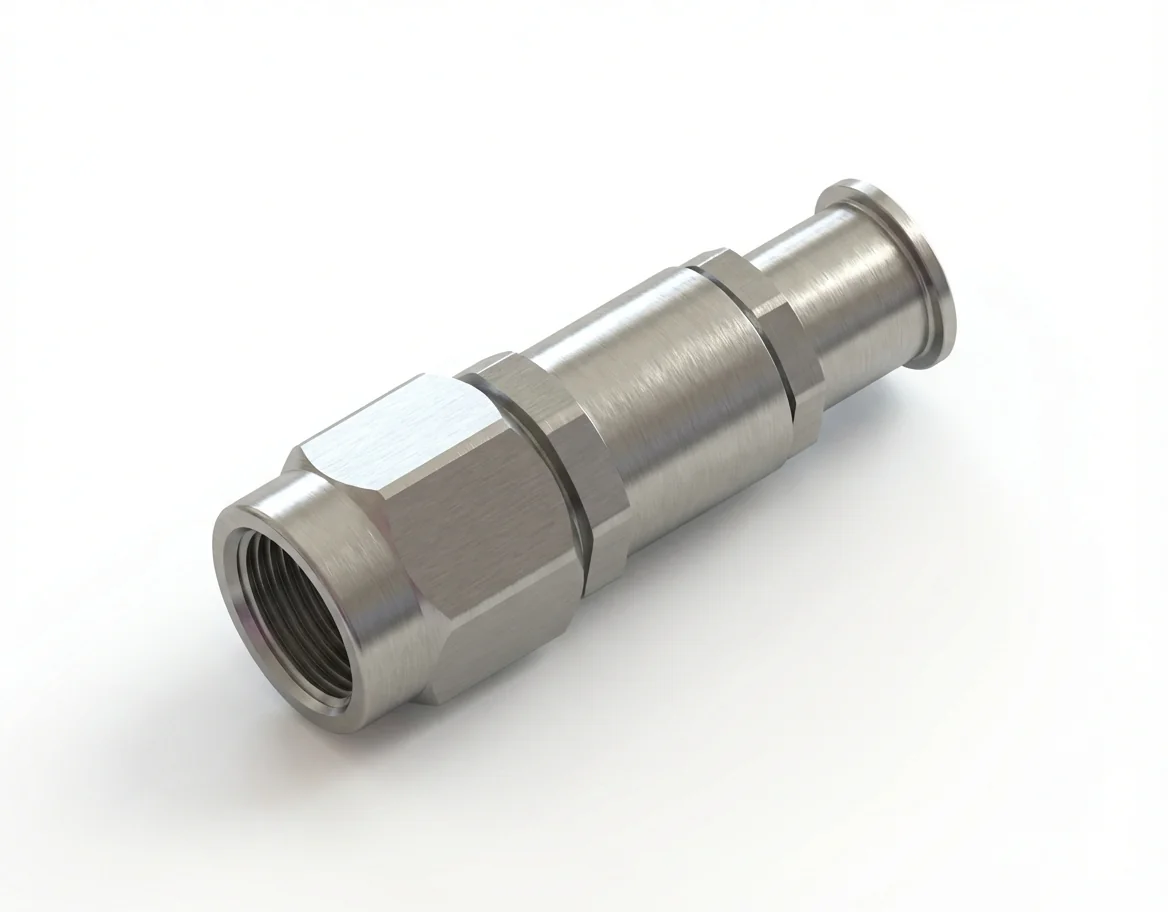

The 2.92 mm male straight cable-mount RF connector, model 2.92-JCFS360-4, is precision-machined for ultra-low-loss performance when paired with the CFS360 phase-stable coaxial cable. Operating from DC to 40 GHz with a 50 Ω impedance, VSWR ≤ 1.17, and insertion loss ≤ 0.06 √f dB, it ensures stable amplitude and phase response across broadband test and measurement systems. Explore related solutions in the 2.92 mm connector family.
The 2.92-JCFS360-4 connector offers excellent impedance uniformity and low reflection across broadband frequencies, supporting reliable phase tracking and consistent attenuation in metrology-grade setups. Its high-precision interface ensures stable S-parameter behavior under repeated connections and environmental variations.
Constructed from passivated stainless steel with a gold-plated beryllium-copper center contact, the 2.92-JCFS360-4 provides mechanical robustness, low contact resistance, and excellent corrosion protection. The tight mechanical tolerances ensure repeatable impedance control and minimal return-loss deviation. For more high-precision interconnects, browse our RF connectors collection.
The solder-type cable-mount termination delivers secure mechanical retention for the outer conductor and dielectric, preserving phase stability and low insertion loss under mechanical or thermal stress. Related termination options are available in cable-mount connectors.
When paired with the CFS360 ultra-low-loss, phase-stable coaxial cable, the 2.92-JCFS360-4 connector delivers high measurement accuracy, phase repeatability, and low reflection—making it the preferred choice for metrology assemblies and broadband calibration systems.
