Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

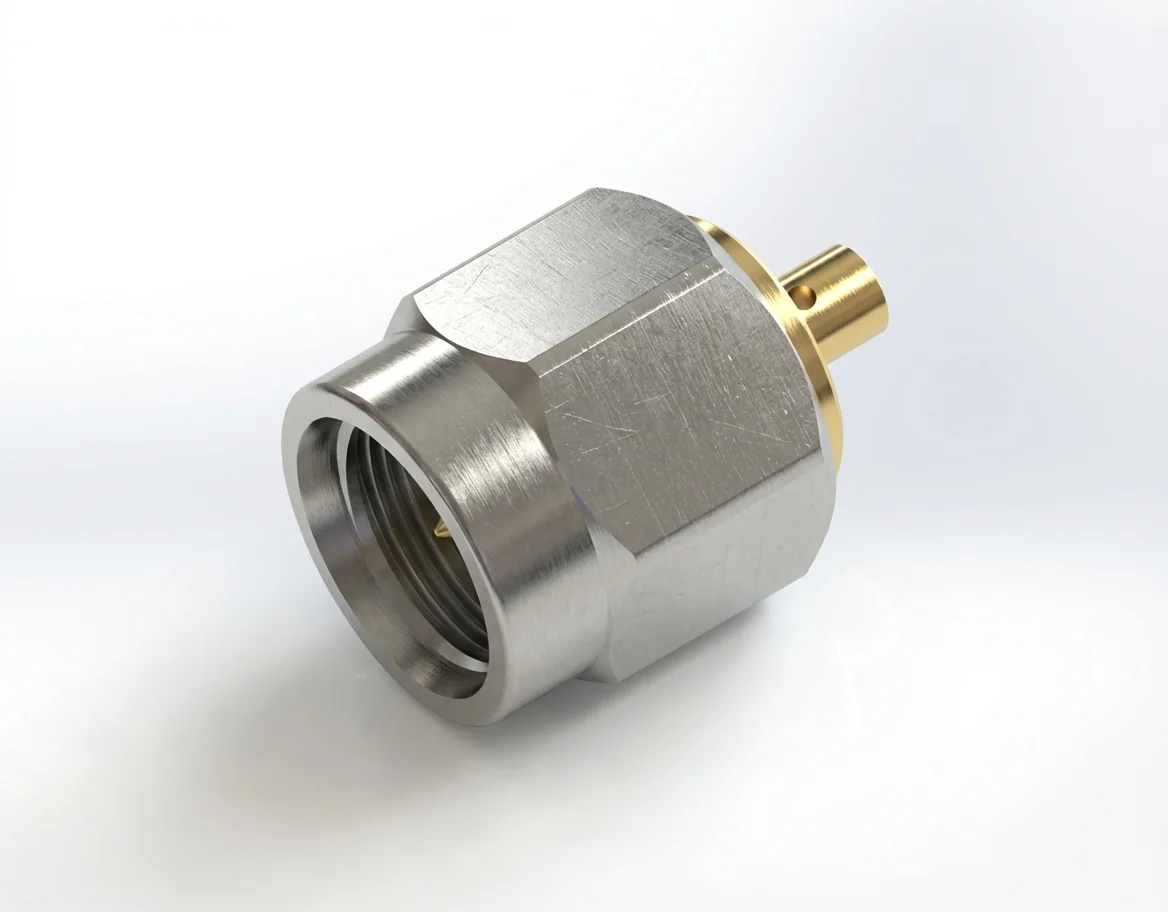

The 2.92 mm male straight cable-mount RF connector, model 2.92-J047-1, is designed for semi-rigid coaxial assemblies using the CRE047 semi-rigid coaxial cable. Operating from DC to 40 GHz with a 50 Ω impedance, VSWR ≤ 1.17, and insertion loss ≤ 0.06 √f dB, it provides outstanding electrical stability and low reflection for aerospace, satellite, and microwave test systems. Explore related high-frequency solutions in the 2.92 mm connector family.
The 2.92-J047-1 connector ensures tight impedance matching, low return loss, and repeatable S-parameter behavior across the broadband spectrum. Its precision design delivers phase stability and reliable signal integrity under extreme mechanical or thermal stress, making it ideal for metrology-grade instrumentation and spaceborne communication modules.
Manufactured from passivated stainless steel with gold-plated beryllium-copper contacts, the 2.92-J047-1 provides high corrosion resistance, mechanical robustness, and low contact resistance. It maintains consistent return-loss and phase integrity across temperature fluctuations and vibration cycles. Browse more precision-engineered designs in our RF connectors catalog.
The solder-mount termination firmly anchors the semi-rigid outer conductor, preserving shielding integrity and ensuring low passive intermodulation (PIM) for defense-grade and aerospace-grade assemblies. For similar robust termination types, explore cable-mount connectors.
When paired with the CRE047 semi-rigid coaxial cable, the 2.92-J047-1 connector achieves superior phase repeatability, low attenuation, and stable broadband response, supporting microwave metrology and aerospace system testing with unmatched precision and durability.
For the corresponding female version, see the 2.92mm female straight RF connector – model 2.92-K047-1.
