2.92mm Male Straight RF Connector – Fits CSA360 Coaxial Cable

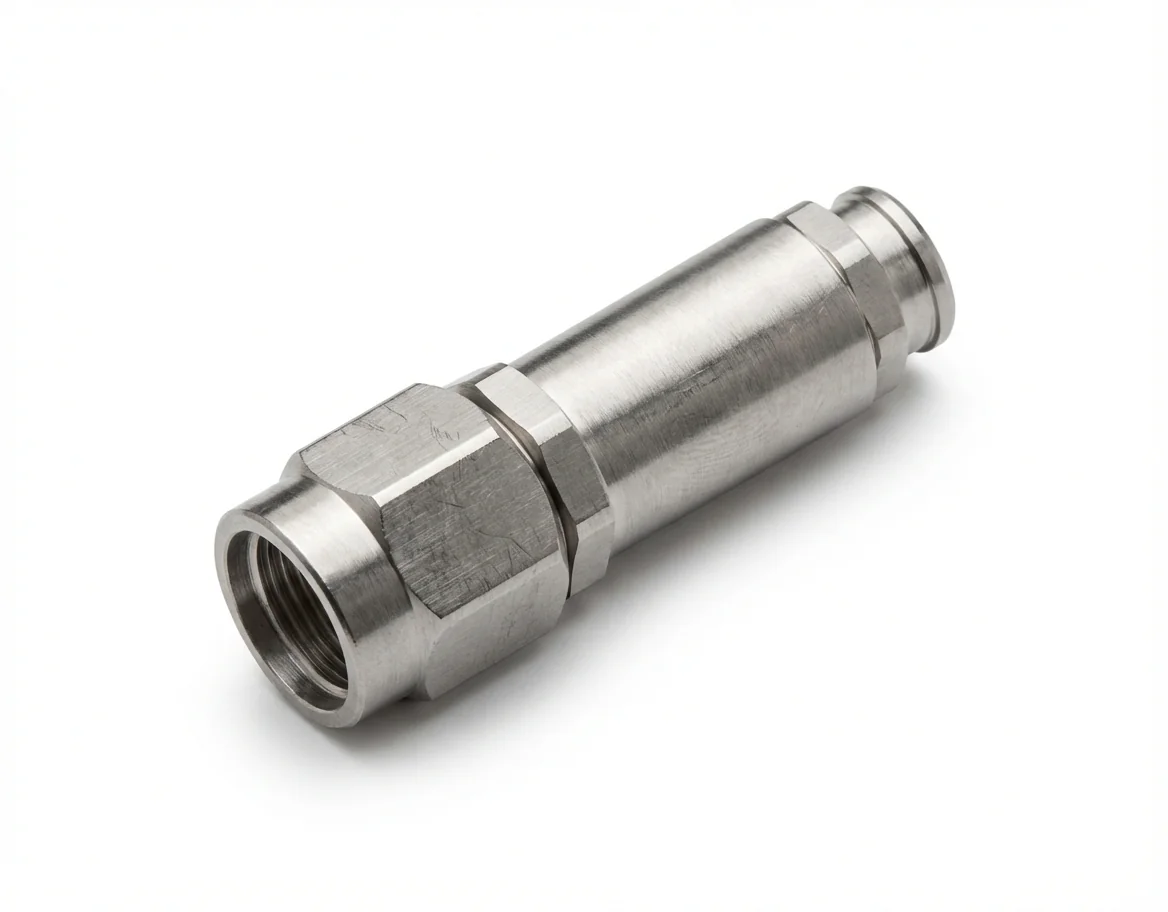

2.92mm Male Straight RF Connector – Cable Mount, Model 2.92-JCSA360-1

The 2.92 mm male straight cable-mount RF connector, model 2.92-JCSA360-1, is engineered for precision performance with the CSA360 low-loss, phase-stable coaxial cable. Operating from DC to 40 GHz with a 50 Ω impedance, VSWR ≤ 1.17, and insertion loss ≤ 0.06 √f dB, it provides reliable signal integrity under thermal and mechanical stress—ideal for industrial and high-frequency testing environments. Explore the 2.92 mm connector family for other precision interfaces.

Electrical Stability and High-Frequency Performance

The 2.92-JCSA360-1 connector maintains consistent impedance and low reflection across the entire DC–40 GHz range. Its optimized geometry supports stable return-loss characteristics and accurate phase tracking in demanding microwave and network analysis applications.

Material Construction and Contact Reliability

Manufactured from passivated stainless steel and fitted with a gold-plated beryllium-copper center contact, the 2.92-JCSA360-1 offers superior conductivity, corrosion resistance, and mechanical strength. Its tight-tolerance design minimizes phase shift and ensures long-term durability over multiple mating cycles. Explore additional interconnect solutions under RF connectors.

Termination Design and Mechanical Integrity

The cable-mount solder termination allows precise assembly with secure strain relief, preserving dielectric centering and minimizing insertion-loss variation. This configuration provides long-term signal stability in dynamic laboratory and field applications. Discover similar termination designs in cable-mount connectors.

Integration and Application Performance

When paired with the CSA360 low-loss, phase-stable coaxial cable, the 2.92-JCSA360-1 connector ensures broadband stability, thermal reliability, and consistent impedance control for use in field instrumentation, RF testing, and environmental measurement systems.
