3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.23mm Pin Diameter

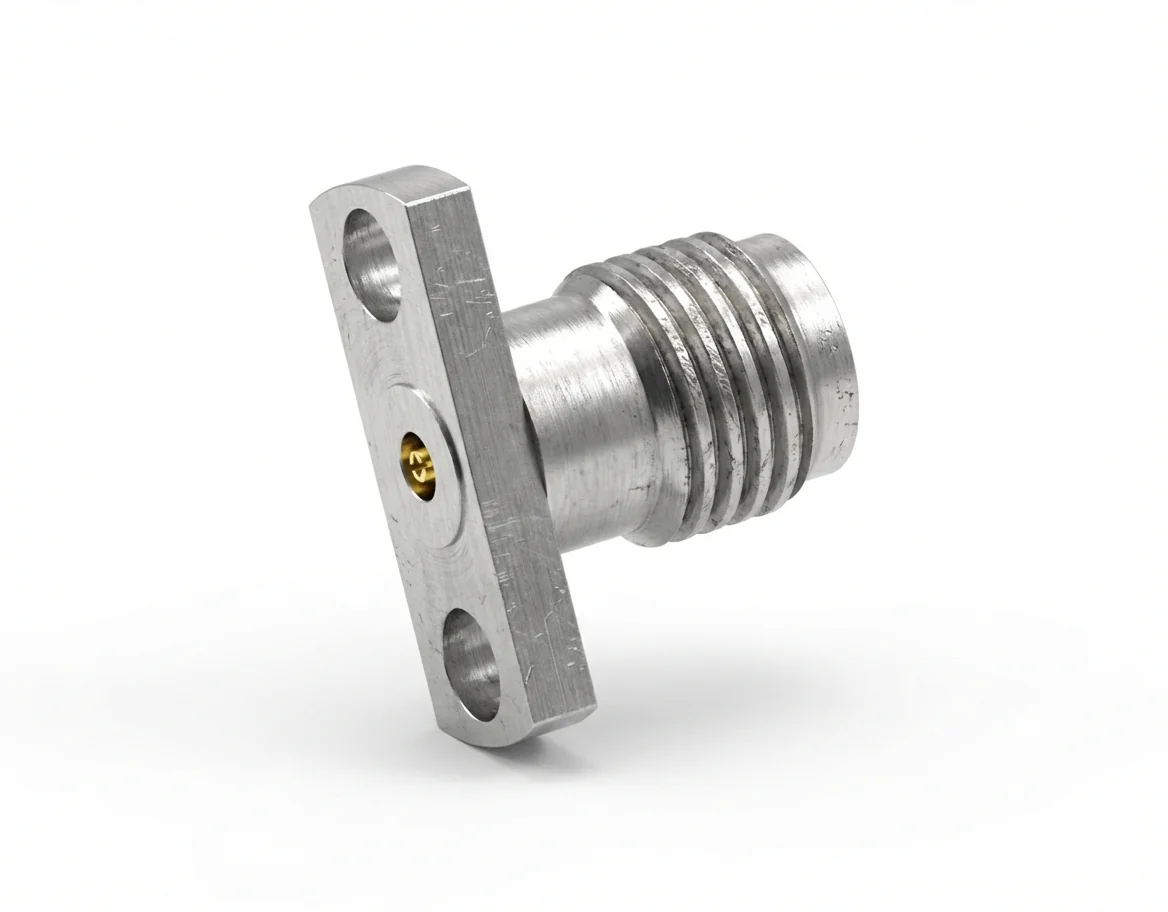

3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD31

The 3.5 mm female 2-hole flange mount RF connector with a 0.23 mm pin and 12.7 mm hole spacing provides exceptional broadband precision and mechanical strength. Its field-replaceable design simplifies maintenance while ensuring consistent electrical alignment up to 26.5 GHz.

Electrical Performance and Stability

Rated at 50 Ω impedance, with VSWR ≤ 1.1 and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector maintains signal accuracy across all microwave frequencies.

Durability and Compliance

Machined from stainless steel with gold-plated beryllium copper contacts, it ensures corrosion resistance and full REACH and RoHS compliance.

Compact and Reliable Mounting

Designed for 2-hole flange mount assemblies in analyzers and test modules that demand both precision and easy interchangeability.

Complementary Male Connector

Use with the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD31. View our complete 3.5 mm connector range inside the RF Connector Catalog.
