3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.38mm Pin Diameter

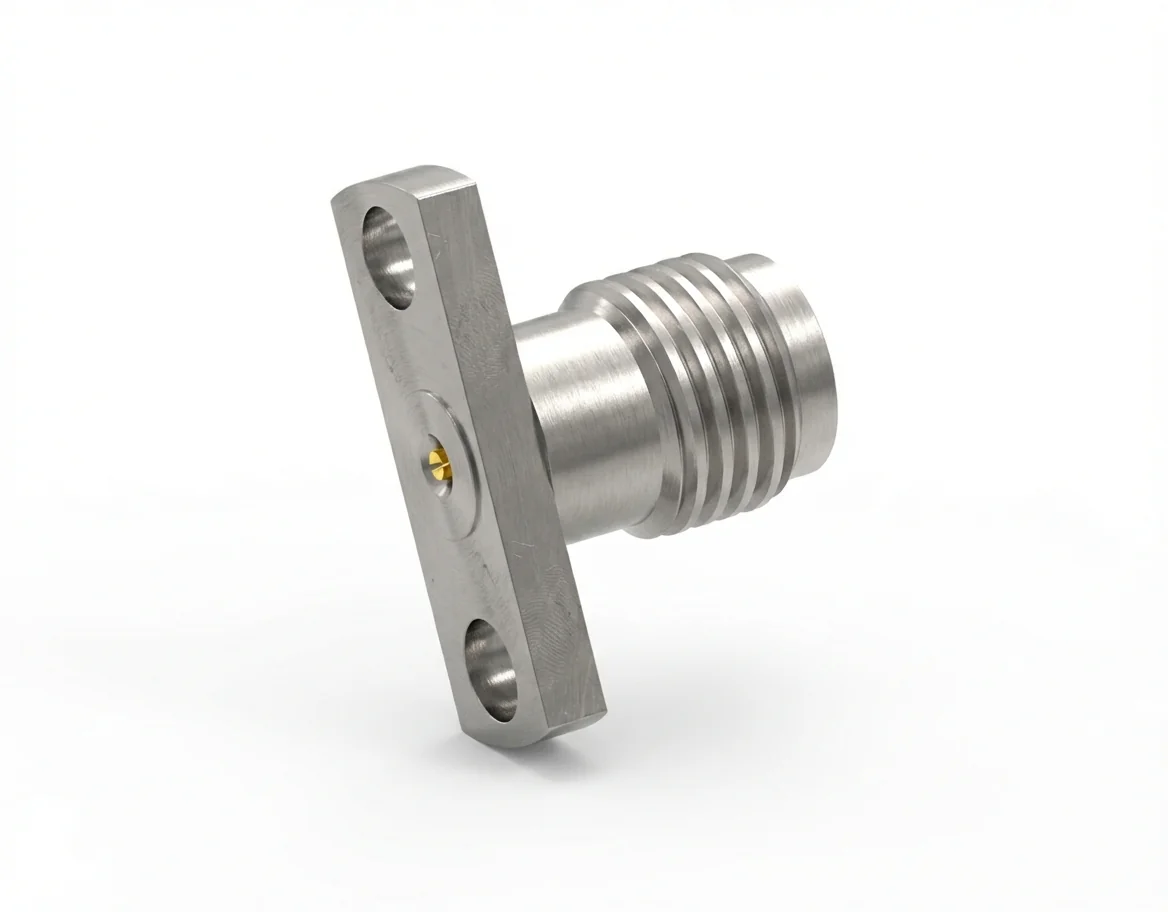

3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD27

The 3.5 mm female 2-hole flange mount RF connector with a 0.38 mm pin and 10.2 mm hole spacing ensures high mechanical precision and broadband stability. Designed as a field-replaceable connector, it offers simple maintenance without compromising electrical performance up to 26.5 GHz.

Electrical Characteristics

With 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, this 3.5 mm female connector delivers consistent low-loss transmission across RF and microwave frequencies.

Construction and Compliance

Manufactured from stainless steel and gold-plated beryllium copper contacts, it provides corrosion resistance and full REACH and RoHS compliance.

System Compatibility

Perfect for 2-hole flange mount integration in calibration kits and precision analyzers requiring stable grounding and mechanical repeatability.

Matching Male Connector

Pair with the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD27. See more in our 3.5 mm connector range within the RF Connector Catalog.
