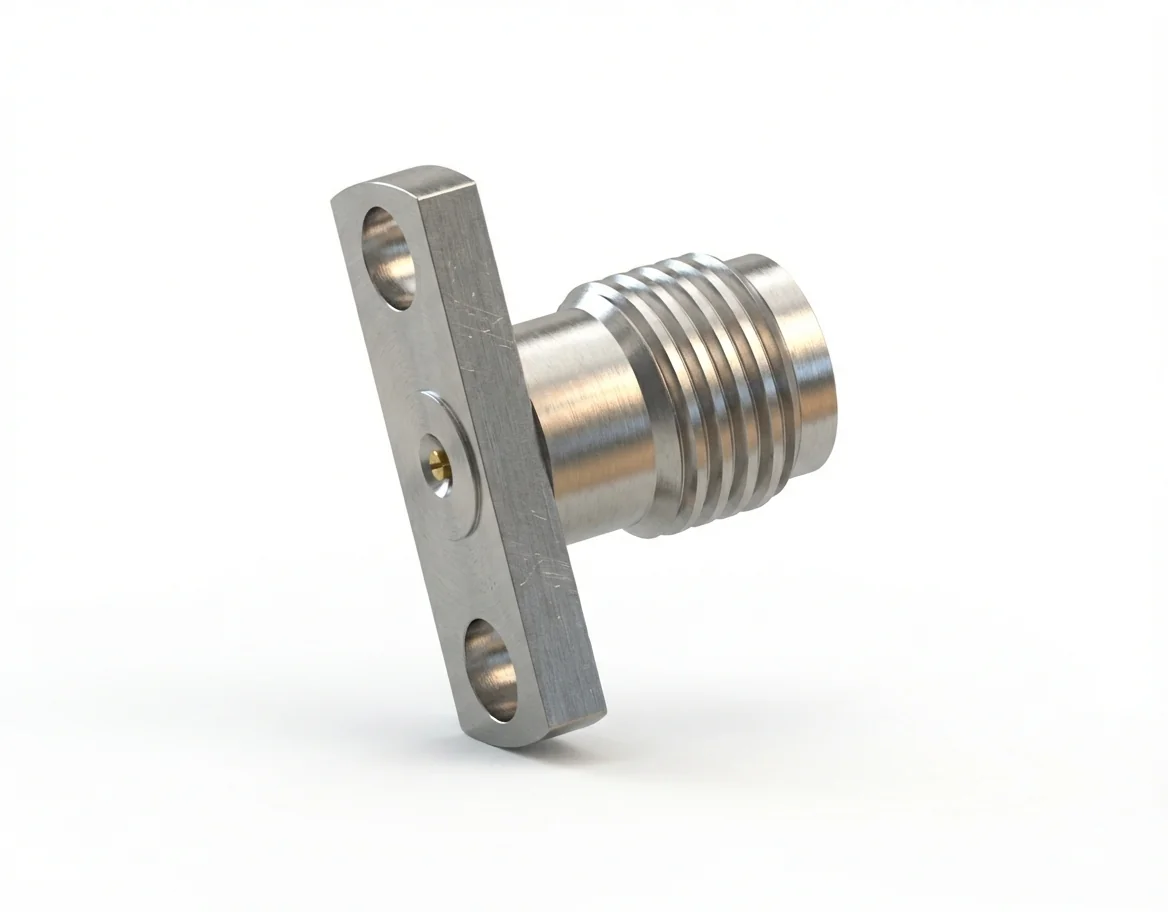

3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.3mm Pin Diameter

3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD25

The 3.5 mm female 2-hole flange mount RF connector with a 0.23 mm pin and 10.2 mm spacing combines mechanical efficiency with precision RF performance up to 26.5 GHz. Its field-replaceable design makes it suitable for compact laboratory and OEM integration.

Performance and Electrical Accuracy

Offering 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector ensures low-reflection signal transfer and excellent return loss stability.

Durable Construction and Compliance

Built from stainless steel and gold-plated beryllium copper contacts, it delivers long-term reliability and meets REACH and RoHS standards.

Integration in Compact Assemblies

Well-suited for 2-hole flange mount assemblies and microwave modules requiring precise fit and low-loss broadband performance.

Mirror Male Connector

Pair with the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD25. Browse our 3.5 mm RF connectors in the RF Connector Catalog.
