3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.3mm Pin Diameter

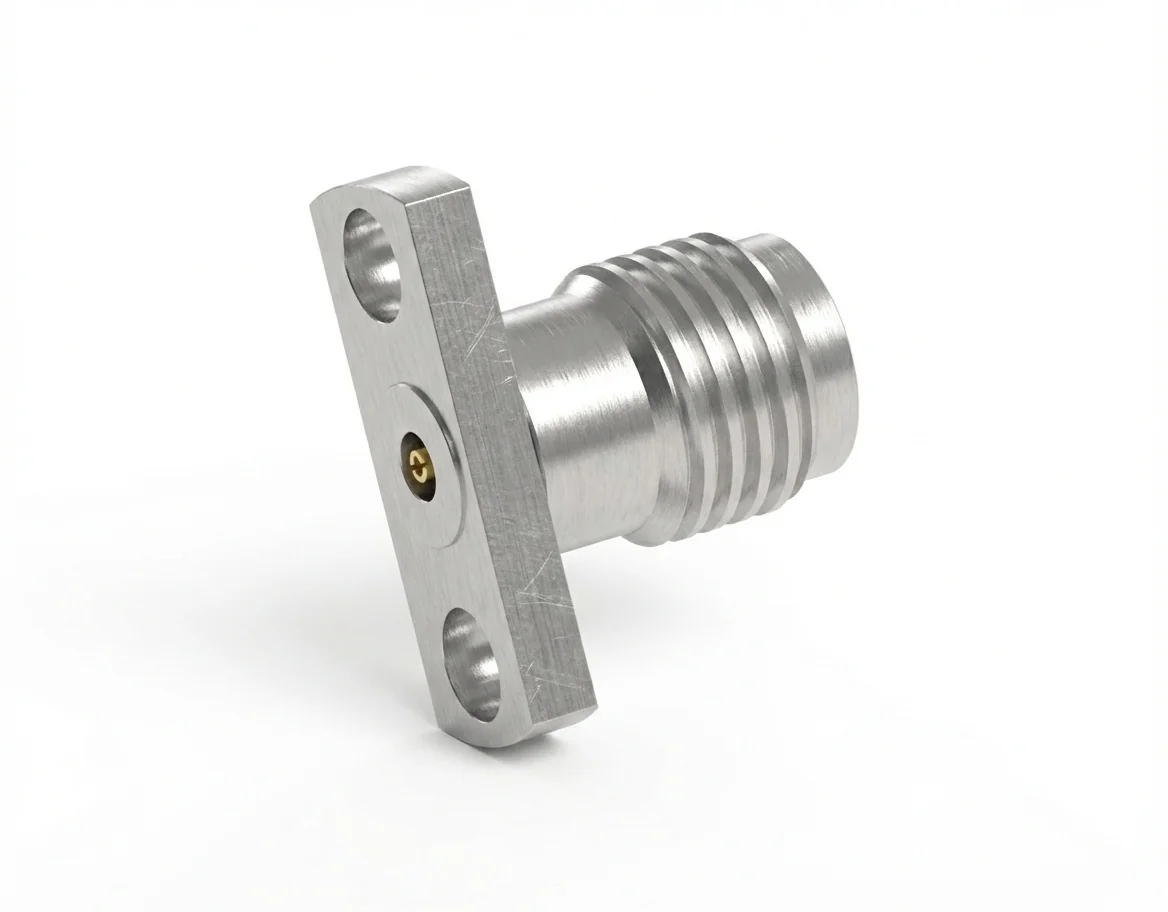

3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD32

The 3.5 mm female 2-hole flange mount RF connector with a 0.30 mm pin and 12.7 mm hole spacing delivers precision alignment and stable performance to 26.5 GHz. Its field-replaceable configuration enables quick connector changes while preserving RF repeatability.

Accurate Electrical Response

Operating with 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector ensures low-loss, phase-stable signal transmission.

Material Integrity and Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, this connector offers high wear resistance and full REACH and RoHS compliance.

Precision RF Integration

Ideal for 2-hole flange mount setups in compact calibration and test systems requiring mechanical repeatability.

Matching Male Connector

Pair with the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD32. Explore the full 3.5 mm RF connector series in our RF Connector Catalog.
