3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.46mm Pin Diameter

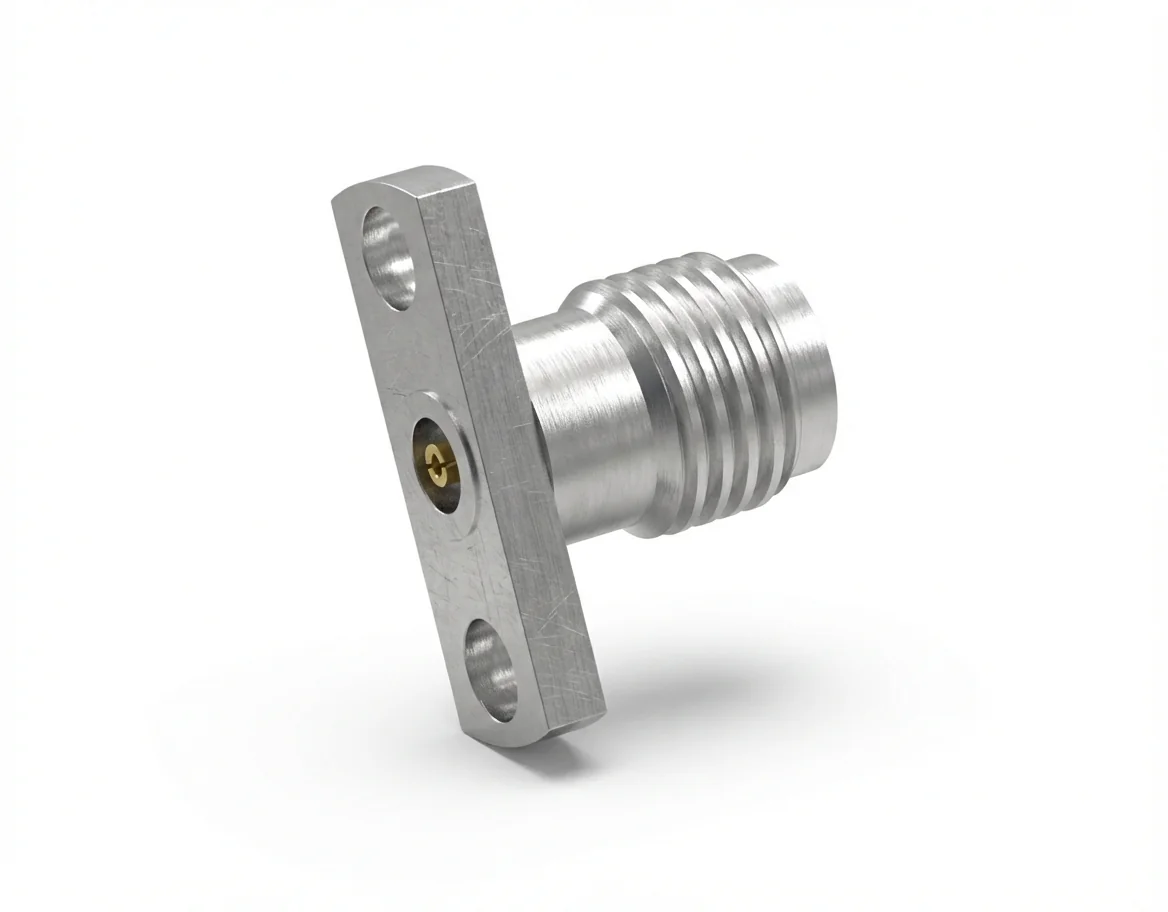

3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD28

The 3.5 mm female 2-hole flange mount RF connector with a 0.46 mm pin and 10.2 mm spacing combines high-frequency precision with compact, rugged design. Its field-replaceable structure allows for efficient connector replacement while maintaining consistent impedance performance.

Outstanding Electrical Characteristics

With 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector ensures stable signal integrity and broadband reliability up to 26.5 GHz.

Materials and Compliance

Made from stainless steel with gold-plated beryllium copper contacts, it provides strong mechanical endurance and full REACH and RoHS compliance.

Precision Mounting Applications

Ideal for 2-hole flange mount modules and microwave analyzers that require low intermodulation and secure grounding.

Complementary Male Connector

Use with the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD28. Browse the 3.5 mm connector series in our RF Connector Catalog.
