3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.46mm Pin Diameter

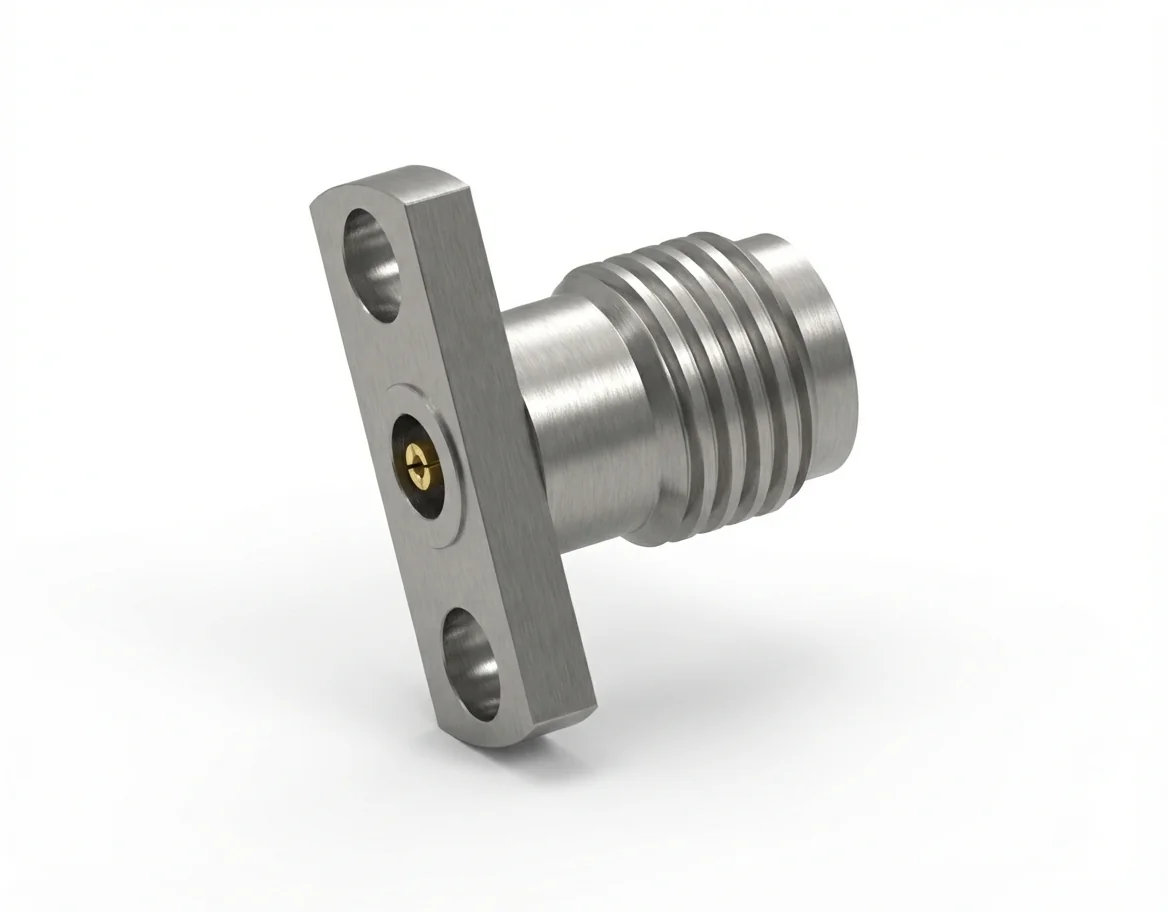

3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD34

The 3.5 mm female 2-hole flange mount RF connector with a 0.46 mm pin and 12.7 mm spacing delivers broadband repeatability and robust structural integrity. Designed as a field-replaceable connector, it enables efficient replacement and calibration in precision test setups.

Electrical Performance and Low Loss

With 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector guarantees stable signal transmission across frequencies up to 26.5 GHz.

High-Quality Construction

Engineered from stainless steel and gold-plated beryllium copper contacts, it ensures longevity, corrosion resistance, and full REACH and RoHS compliance.

Mounting and Application Range

Perfect for 2-hole flange mount integration in compact analyzers, network instruments, and microwave sub-assemblies.

Mirror Male Connector

Use alongside the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD34. Explore more in the 3.5 mm RF connector catalog within our RF Connector section.
