3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.51mm Pin Diameter

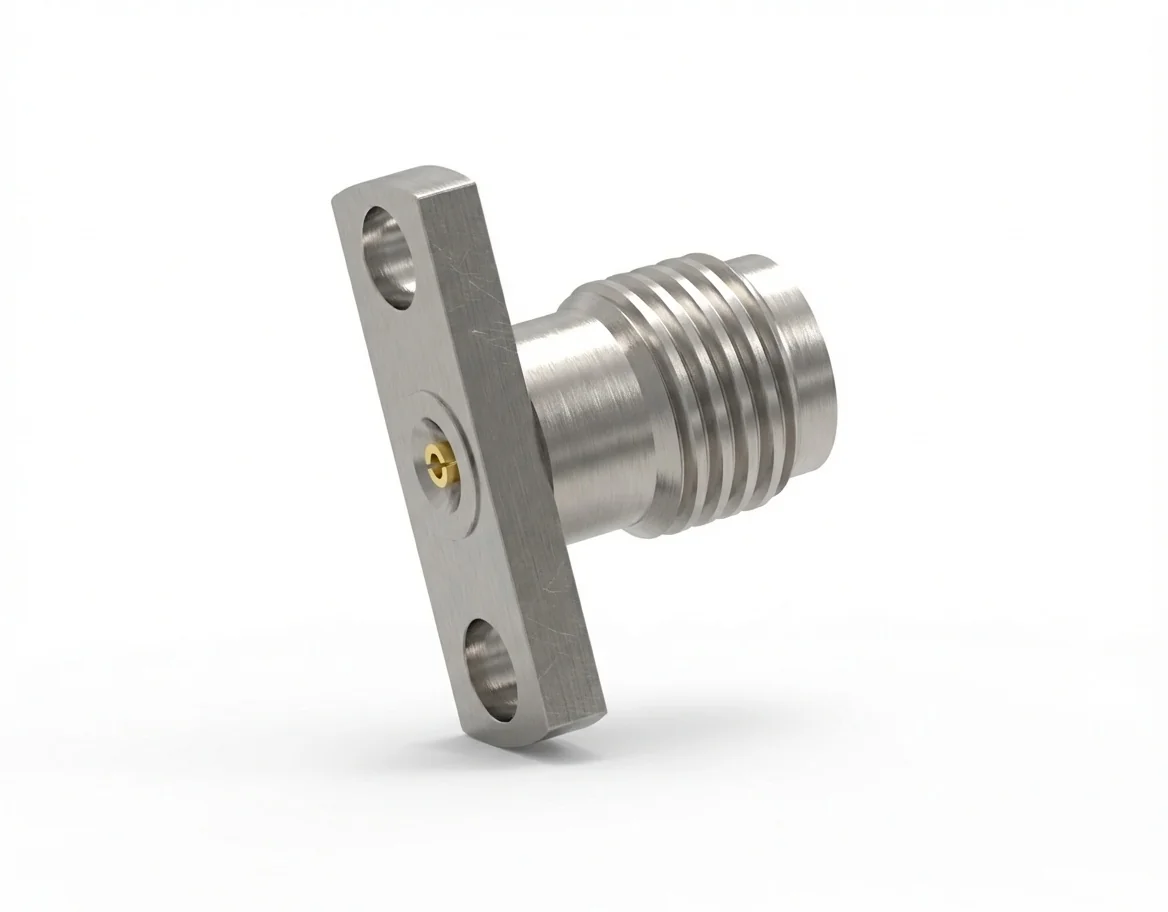

3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD29

The 3.5 mm female 2-hole flange mount RF connector with a 0.51 mm pin and 10.2 mm spacing provides high mechanical reliability and repeatable performance across broadband frequencies. Its field-replaceable configuration ensures easy maintenance and precise alignment.

Electrical Stability and Performance

Operating with 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector offers minimal signal degradation through 26.5 GHz.

Construction and Compliance

Crafted from stainless steel with gold-plated beryllium copper contacts, the connector offers long life and full REACH and RoHS compliance.

Integration and Use Cases

Perfect for 2-hole flange mount modules in RF testing and measurement environments requiring repeatable electrical contact.

Mirror Male Connector

Pair with the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD29. Explore our 3.5 mm RF connector range inside the RF Connector Catalog.
