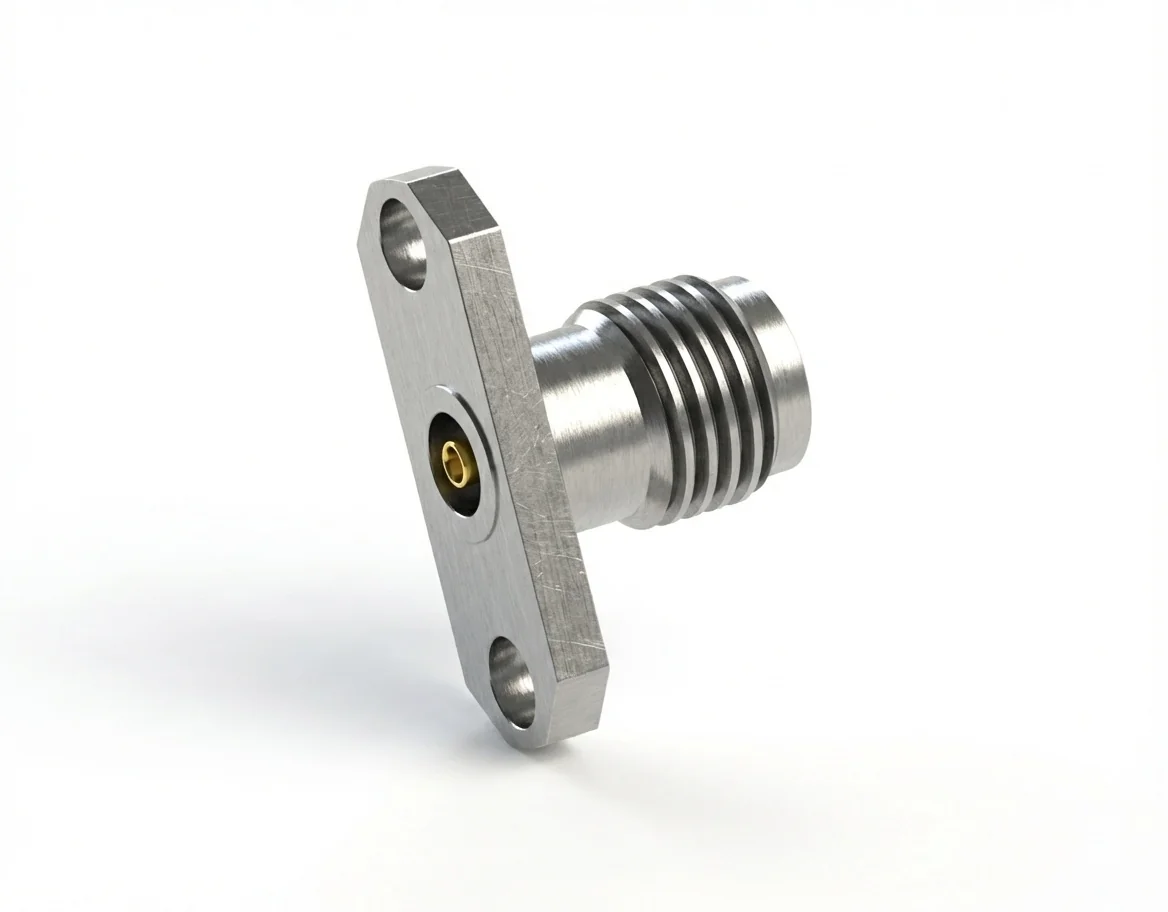

3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.9mm Pin Diameter

3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD24

The 3.5 mm female 2-hole flange mount RF connector with a 0.90 mm pin and 12.22 mm spacing is optimized for robust mechanical stability and excellent broadband repeatability to 26.5 GHz. This field-replaceable connector ensures consistent electrical contact in precision RF assemblies.

Signal Integrity and Broadband Performance

With 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector delivers low-loss transmission and superior phase stability across frequencies.

Material and Compliance

Made from stainless steel and gold-plated beryllium copper, the connector offers exceptional durability and is fully REACH and RoHS compliant.

Applications and Mounting Advantages

Designed for 2-hole flange mount RF chassis and measurement modules where compactness and precision are essential.

Matching Male Connector

Compatible with the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD24. See our 3.5 mm connector series in the RF Connector Catalog.
