3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.9mm Pin Diameter

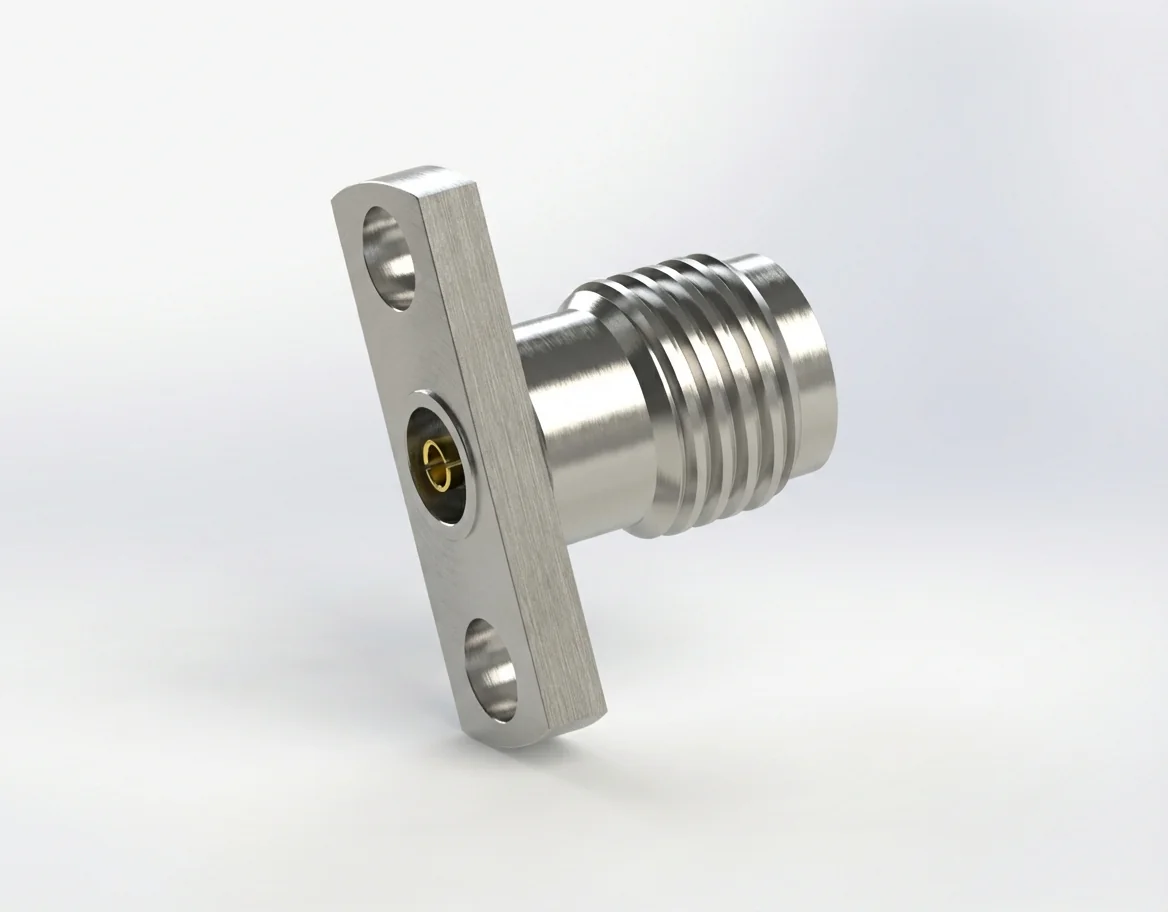

3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD30

The 3.5 mm female 2-hole flange mount RF connector with a 0.90 mm pin and 10.2 mm spacing offers precision mechanical structure and stable broadband electrical characteristics. Its field-replaceable interface supports quick maintenance without compromising signal quality.

Broadband Electrical Precision

Featuring 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector ensures excellent return loss and phase consistency up to 26.5 GHz.

High-Quality Materials and Compliance

Built with stainless steel and gold-plated beryllium copper contacts, it offers robust mechanical endurance and meets full REACH and RoHS compliance standards.

Applications and System Compatibility

Optimized for 2-hole flange mount RF enclosures, calibration systems, and modular analyzers requiring precision and repeatability.

Complementary Male Connector

Use with the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD30. See more options in our 3.5 mm connector range in the RF Connector Catalog
