3.5mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.9mm Pin Diameter

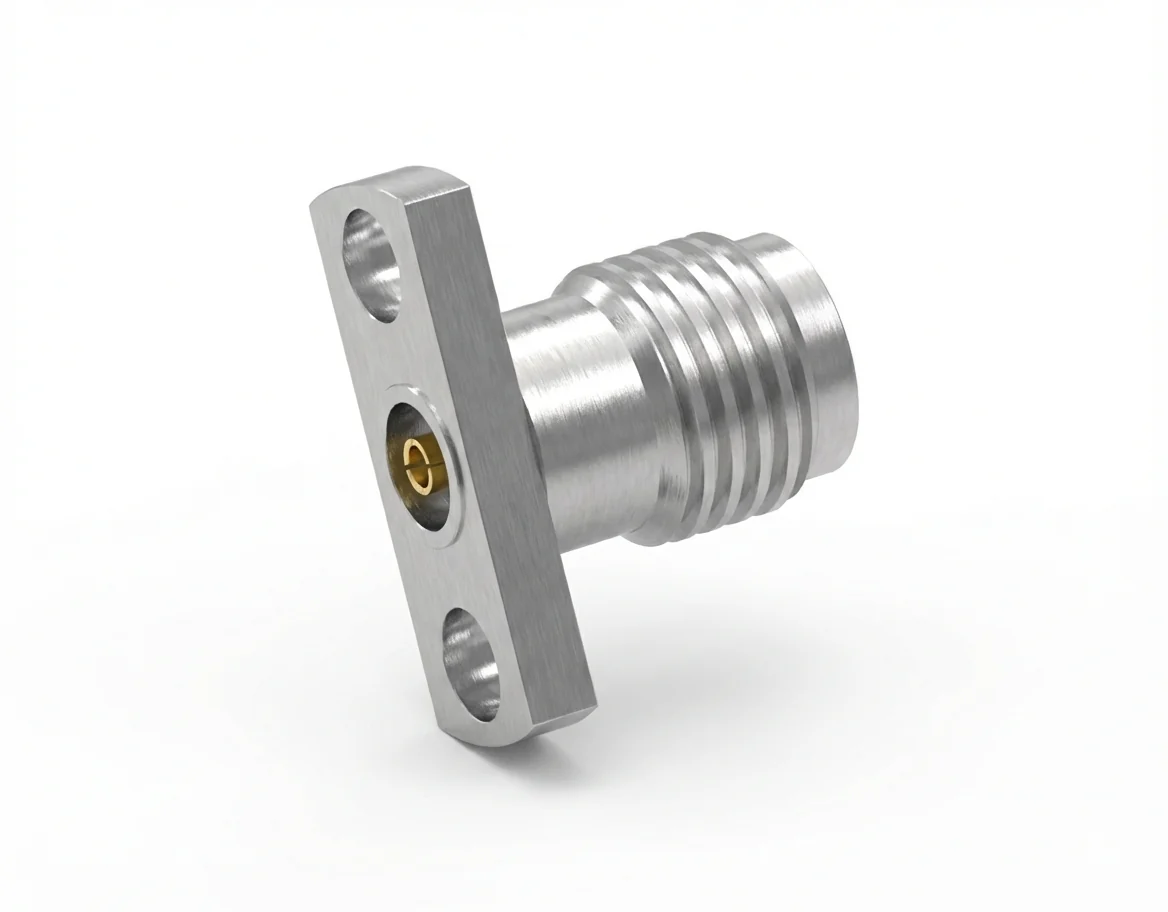

3.5mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD36

The 3.5 mm female 2-hole flange mount RF connector with a 0.9 mm pin and 12.7 mm hole spacing delivers broadband precision and repeatable RF performance for high-frequency systems. Designed as a field-replaceable connector, it allows convenient maintenance without compromising electrical stability or mechanical accuracy up to 26.5 GHz.

Broadband Electrical Performance

Operating with 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female connector ensures minimal signal reflection and low loss across its entire operating frequency range.

Material Construction and Compliance

Machined from high-grade stainless steel and fitted with gold-plated beryllium copper contacts, it offers excellent corrosion resistance and full REACH and RoHS compliance, ensuring reliable long-term use in precision applications.

Mechanical Configuration and Mounting

The 12.7 mm hole spacing provides robust alignment in 2-hole flange mount assemblies, supporting stable grounding and accurate positioning in analyzers, calibration systems, and precision RF modules.

Complementary Male Connector

Use together with the 3.5 mm male 2-hole flange mount RF connector – Model 3.5-JFD36. Browse the complete 3.5 mm connector range inside our RF Connector Catalog for compatible options.
