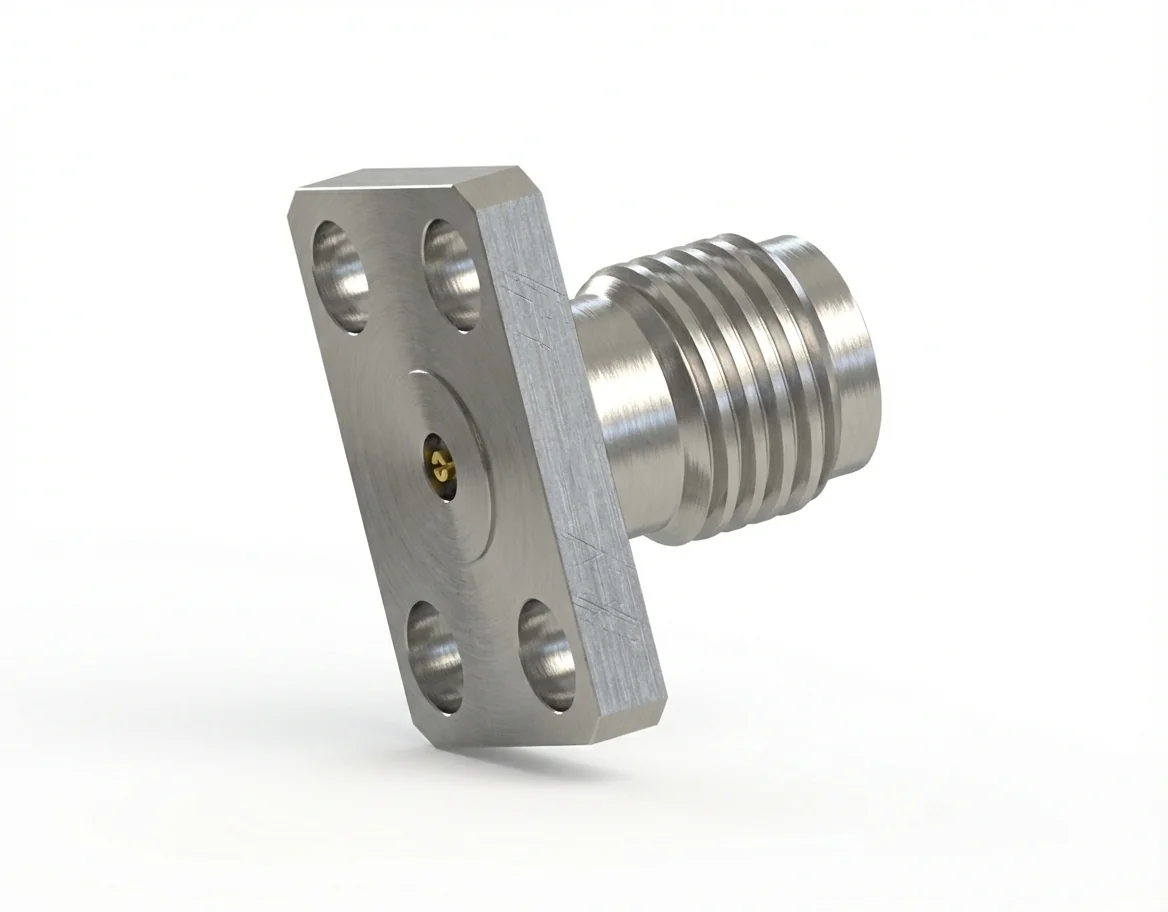

3.5mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.23mm Pin Diameter
| Quantity | Price |
| 1 - 99 | 23,00 $ |
| 100 - 199 | 22,54 $ |
| 200 - 499 | 22,31 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description
3.5mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD13
The 3.5 mm female 4-hole flange mount RF connector with a 0.23 mm pin and 5.64 mm hole spacing is engineered for compact installations and high-frequency signal reliability. Its field-replaceable interface offers flexibility for maintenance and modular design adaptation.
Electrical and Mechanical Excellence
Featuring 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female flange connector ensures consistent impedance matching and low-loss performance up to 26.5 GHz.
Material Composition and Compliance
Built from stainless steel with gold-plated beryllium copper contacts, it resists corrosion and mechanical wear while remaining REACH and RoHS compliant.
Integration in Precision Systems
Ideal for 4-hole flange mount modules, precision analyzers, and microwave instruments where tight space and high stability are required.
Mirror Male Connector
Compatible with the 3.5 mm male 4-hole flange mount RF connector – Model 3.5-JFD13. View the 3.5 mm series in our RF Connector Catalog.
