3.5mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.3mm Pin Diameter

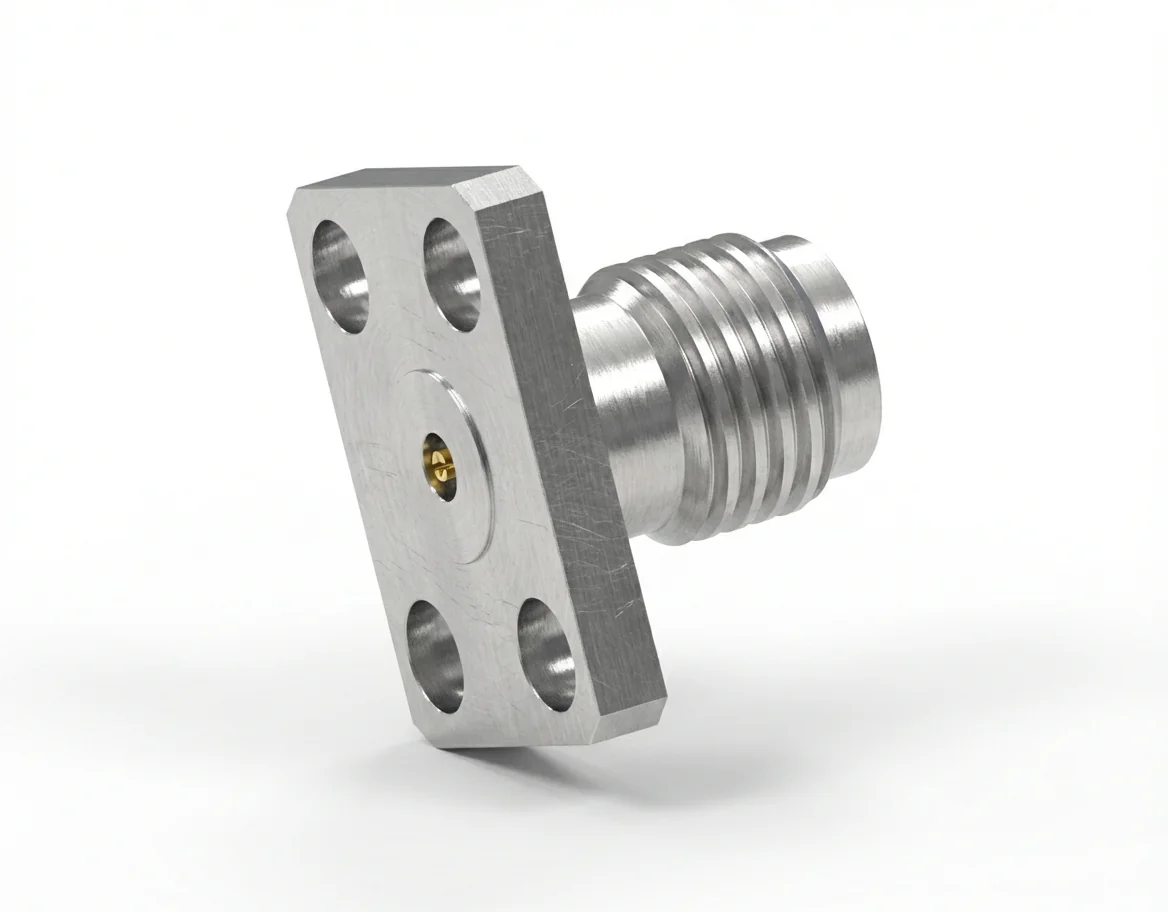

3.5mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD14

The 3.5 mm female 4-hole flange mount RF connector with a 0.30 mm pin and 5.64 mm hole spacing delivers broadband precision and stable impedance up to 26.5 GHz. This field-replaceable design enhances serviceability and minimizes downtime during testing operations.

Consistent Electrical Performance

Designed for 50 Ω impedance and supporting VSWR ≤ 1.1 with insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female flange connector provides exceptional repeatability and low return loss.

Material Integrity and Standards

Fabricated from stainless steel with gold-plated beryllium copper contacts, it ensures long-lasting conductivity and complies fully with REACH and RoHS environmental directives.

Integration and Use Cases

Suitable for 4-hole flange mount assemblies, test platforms, and calibration networks where stability and low intermodulation are vital.

Matching Male Connector

Use alongside the 3.5 mm male 4-hole flange mount RF connector – Model 3.5-JFD14. Find related 3.5 mm connectors in the RF Connector Catalog.
